Sensor identity and deployment context

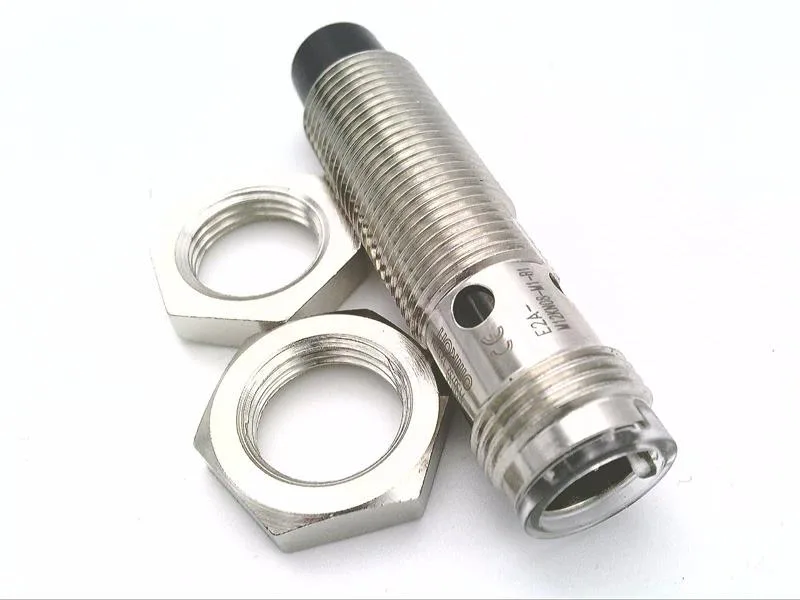

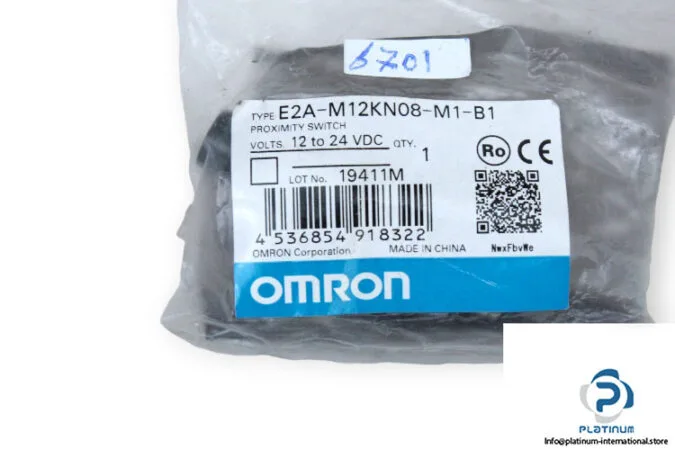

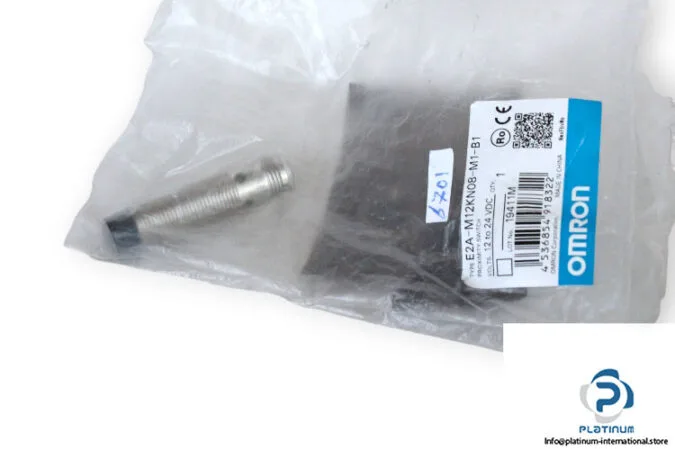

The Omron E2AM12KN08M1B1 is a current-production M12 non-shielded cylindrical inductive proximity sensor (order code E2A-M12KN08-M1-B1), designed to detect ferrous metal targets at a rated distance of 8 mm ± 10%. The PNP output and M12 connector make it a drop-in fit for standard industrial control cabinets where a 3-wire DC sensor is called out on the I/O map.
What the key ratings mean for fit
The 8 mm nominal sensing distance is measured against a standard ferrous target. For non-ferrous metals (aluminum, brass, stainless) the effective range drops — the sensor still triggers, but the gap must be reduced. The setting distance of 0 to 6.4 mm gives you a reliable switch point below the nominal max, accounting for the 10% differential travel (hysteresis) that prevents chatter near the threshold. Operating supply is 12 to 24 VDC with a 10 to 32 VDC absolute range, so it runs on a standard 24 VDC control bus. Current consumption stays under 10 mA, which matters when you are budgeting the loop power for a dense sensor array on a single PLC card. The brass body and M12 connector handle washdown environments up to IP67 (implied by the connector type and cylindrical form). Ambient temperature range of -40°C to 70°C operating covers freezer lines and hot-process zones alike, though the 85°C storage limit is for shelf life, not running.
