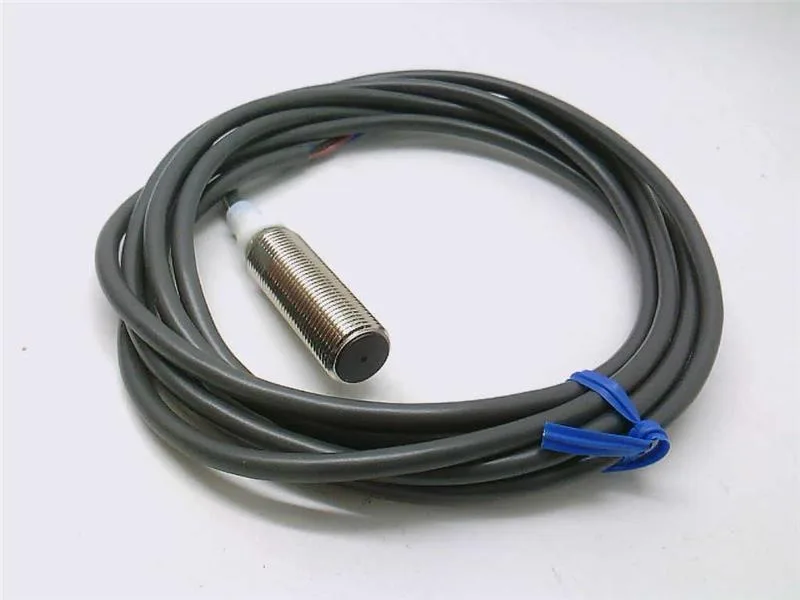

The Omron E2AM18LN16WPB1 is an M18 inductive proximity sensor in a standard threaded barrel, outputting PNP normally open (NO) with a 16 mm sensing range. The brass nickel-plated housing and IP67 rating make it suited for wet or dusty environments — common on conveyor and packaging lines where washdown is routine. Supply voltage is 12 to 24 VDC; the sensor draws under 10 mA. The 2-meter 3-wire cable (brown/blue/black) mates to standard PLC inputs without adapters.
Omron E2AM18LN16WPB1 M18 Inductive Prox, PNP NO, 16mm
MPNE2AM18LN16WPB1
Omron E2AM18LN16WPB1 inductive proximity sensor, M18 barrel, PNP NO output, 16 mm sensing range, 2 m cable.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Inductive Proximity Sensor |
| Parameter | Value |
|---|---|
| Electrical connection | Cable 3-Wires (2m) |
| Parameter | Value |
|---|---|
| Size | M18 |
| Housing material | Brass, Nickel Plated |
| Parameter | Value |
|---|---|
| Model | E2A-M18LN16-WP-B1 |
| Weight | 0,2 kg |
| Contact | PNP 1 Normally Open (NO) |
| Condition | Used |
| Shelf no. | 240424 , 240924 |
| Sensing distance | 16 mm |
| Sensor length | 78 mm |
| Type of product | Inductive Proximity Sensor |
| IP rating | IP67 |
| Operating temperature | -40 … 70 °C |
| Rated supply voltage | 12 … 24 V DC |
| Operating supply current max. | 10 mA |
Product details
Frequently asked questions
What is the size and type of this sensor?
It is an M18 inductive proximity sensor — the standard 18mm threaded barrel form factor.
MPN
E2AM18LN16WPB1
