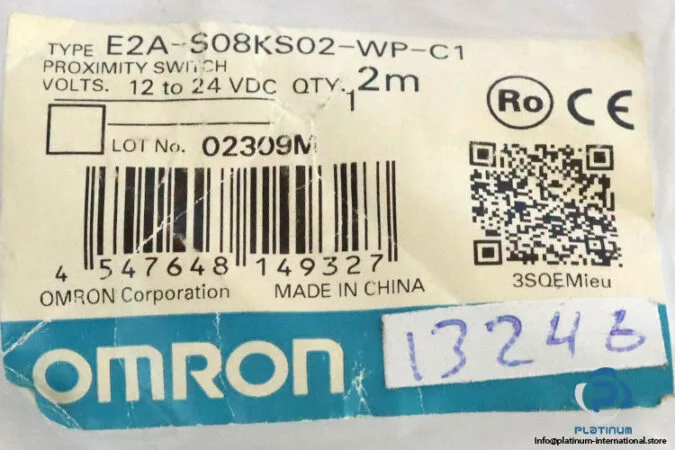

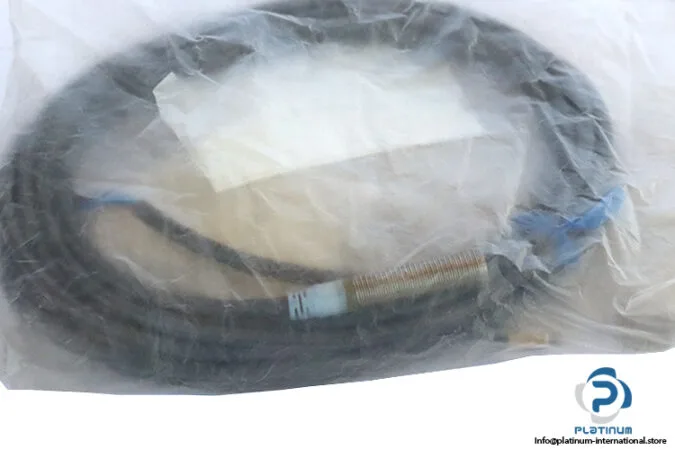

The Omron E2A-S08KS02-WP-C1 (E2AS08KS02WPC1) is an M8 inductive proximity sensor with a flush-mounted 2 mm sensing range. It switches via an NPN normally open output at 200 mA load current across the 12 to 24 VDC operating range. The stainless steel housing and dual IP67/IP69K rating make it suitable for washdown environments in packaging or food processing lines.
What the ratings mean for fit
The 2 mm sensing range is the maximum rated distance; for reliable detection target material and size should be considered, but flush mounting eliminates side-interference from adjacent steel. The IP69K rating certifies the housing withstands high-pressure, high-temperature washdown cycles—critical for sanitary zones. NPN output is common for Japanese-origin PLC inputs; confirm sink/source compatibility with the controller card.
