Product overview

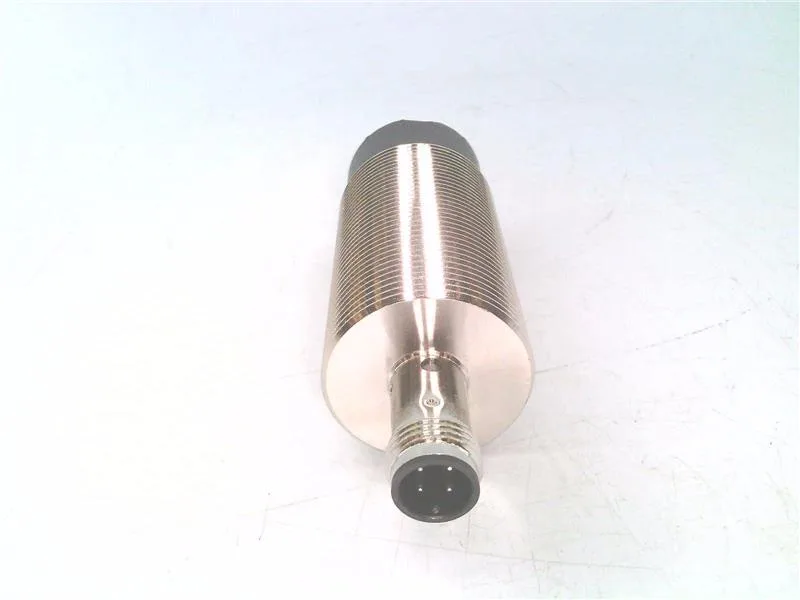

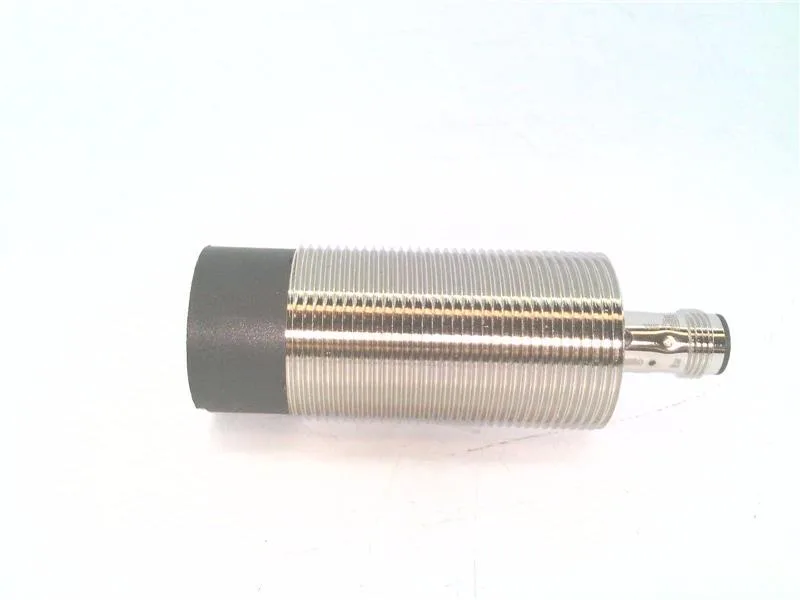

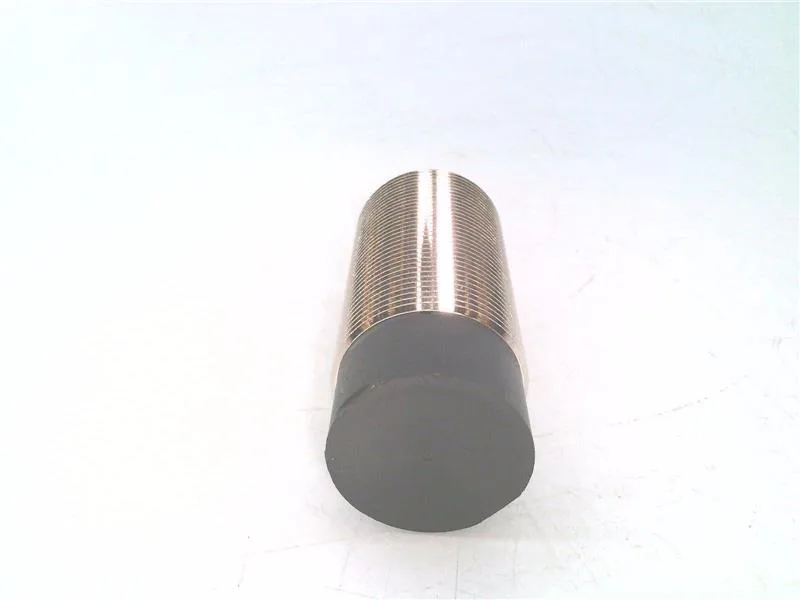

Omron E2B-M30LN30-M1-B2 is a DC 3‑wire inductive proximity sensor in the E2B economy long‑barrel series. M30 threaded housing, unshielded (non‑flush mount), sensing distance 30 mm. PNP output, normally closed, 12‑24 VDC supply. M12 4‑pin quick‑disconnect. Nickel‑plated brass body, overall length 86 mm, threaded length 51 mm.
Comparison with E2B-M30KS15-M1-B2
The E2B-M30LN30-M1-B2 shares the same M30 housing, PNP output, NC operation, M12 connector, and 12‑24 VDC supply with the E2B-M30KS15-M1-B2. Key differences: the KS15 is shielded (flush mount) with 15 mm sensing distance and overall length 64 mm; this unit is unshielded (non‑flush) with 30 mm sensing distance and 86 mm overall length. Physically interchangeable in the same M30 mounting hole and connector, but the sensing range and flush vs non‑flush mounting require a panel re‑evaluation.
