What it is and what it does

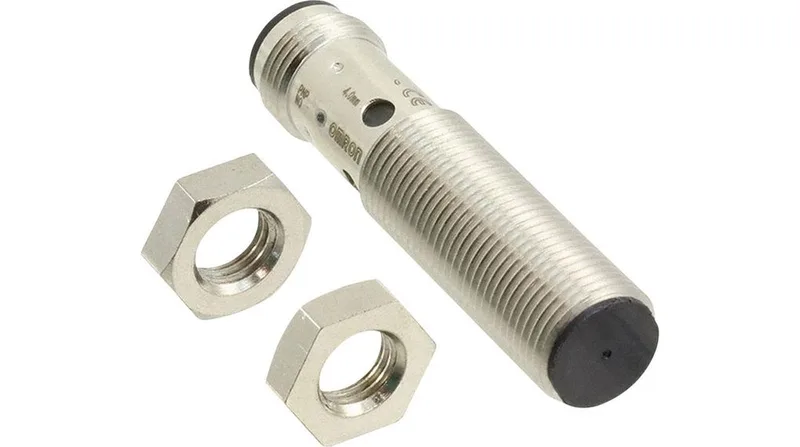

The Omron E2BM12KS02M1B1OMI is a flush-mount M12 inductive proximity sensor from the E2B series, rated for a 2 mm sensing distance on mild steel. It switches at 1.5 kHz, which is fast enough to count small parts on a vibratory feeder or detect a passing gear tooth without missing pulses. The output is PNP normally open — a sourcing signal that goes high when metal enters the detection zone, so it plays well with PLC inputs that expect a 24 V signal. The M12 barrel is brass, threaded for standard M12 mounting holes, and sealed to IP67 — meaning it handles washdown and coolant splash without leaking. The M12 4-pin connector makes field replacement a plug-in swap; no need to open the panel or re-terminate wires.
What the ratings mean for fit
The 2 mm sensing distance is for a flush-mount sensor — you can embed it in a metal bracket without needing a non-ferrous standoff, but the target must pass within 2 mm of the face. That's tight; if your application has vibration or target wobble, you'll want to verify the gap stays under that limit. The 10% repeat accuracy means the switch point can drift up to 0.2 mm over temperature and time — acceptable for presence detection, not for precision positioning. Switching at 1.5 kHz gives you a minimum on/off pulse width around 330 µs. That's enough for counting at line speeds up to several meters per second with a small target. The load current is rated at 200 mA — enough to drive a small relay or PLC input directly, but don't plan on powering a contactor coil without an interposing relay. Supply voltage range is 10–30 VDC, drawing 10 mA quiescent. That's standard for industrial 24 VDC control loops. The operating temperature range of -25 to 70 °C covers most indoor plant environments but won't survive a foundry floor or freezer tunnel without derating.
