What it is and what it does

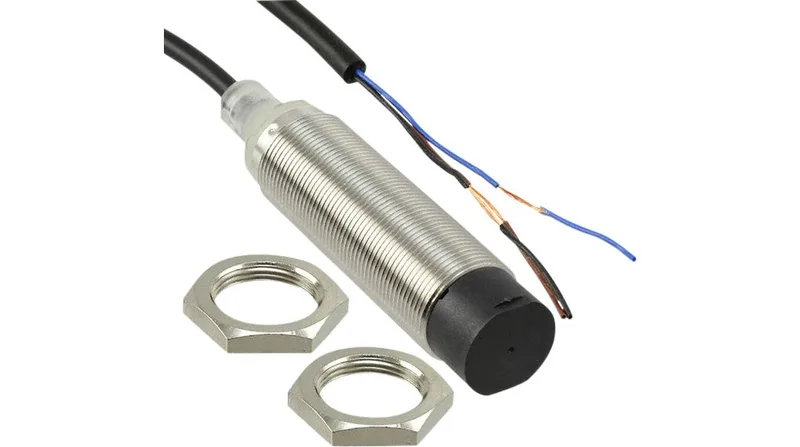

The Omron E2BM18LN16WPB12MOMI is an M18 inductive proximity sensor from the E2B series, a line built for harsh industrial environments. It detects ferrous metal targets up to 16 mm away without physical contact — that 16 mm range is the maximum rated sensing distance, so expect derating for non-ferrous metals or reduced target size. The 400 Hz switching frequency means it can track fast-moving parts on a conveyor or rotating machinery without missing a pulse. Output is PNP normally open (make contact), switching 200 mA max at 10-30 VDC. That's a standard three-wire DC sink for PLC inputs or relay coils. The 10 mA current consumption is the sensor's own draw — negligible for most power budgets.
Built for the pit and the washdown
The brass housing and IP67 rating mean this sensor shrugs off the abrasive slurry and high-pressure washdown you'd see in a mine's crusher circuit or a food-and-bev line. Non-flush mounting gives you flexibility to install it through a bracket or standoff without worrying about metal surrounding the sensing face — the 16 mm range holds up as long as the target approaches from the front. The 2 m cable is pre-terminated, so you're wiring into a junction box or M12 pigtail at the panel end. Temperature range of -25 to 70 °C covers most outdoor and unheated indoor installations. The 10% repeat accuracy is typical for this class of inductive sensor — fine for presence detection, not for precision positioning.
