10 mm sensing range on an unshielded M18 barrel

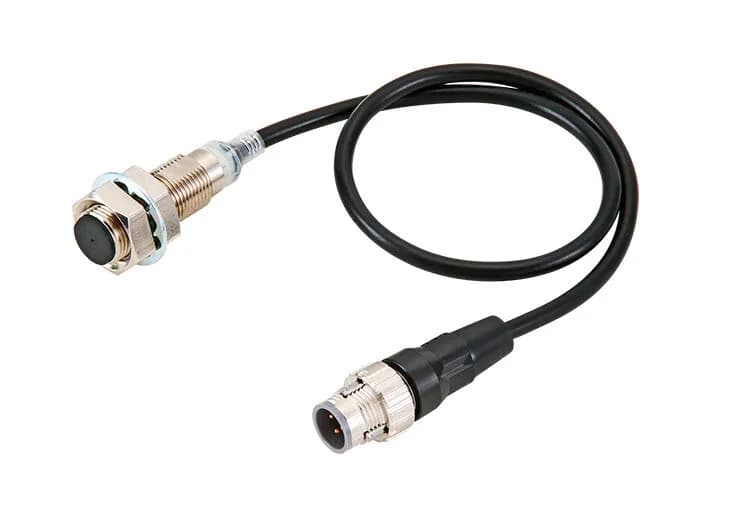

The Omron E2E-X10MB3TL18-M1TJ 0.3M is an M18 unshielded proximity sensor from the E2E NEXT series, rated for a 10 mm sensing distance on mild steel. The unshielded construction means the field projects beyond the barrel face — the full 10 mm range holds only when the target approaches axially and the surrounding metal is outside the lateral detection zone. For stainless steel targets, apply the standard correction factor of approximately 0.7×, which budgets the usable range to 5–6 mm. The long-body form factor (77.3 mm overall, 50 mm threaded length) provides the coil length needed for the 10 mm unshielded range. The nickel-plated brass barrel and PBT sensing face resist the chemical exposure typical in washdown zones.
IP67/IP67G/IP69K — washdown-rated housing and face
The sensor carries IP67, IP67G, and IP69K ingress protection ratings. IP67 covers temporary immersion; IP67G adds oil resistance for the gasket interface; IP69K certifies the housing and sensing face against high-pressure, high-temperature washdown (80–100 bar at 80 °C). This triple rating makes the sensor a direct fit for food-and-beverage, dairy, and pharmaceutical lines where caustic and steam cleaning cycles are routine. The M12 pigtail with Smartclick connector (0.3 m cable) locks with a quarter-turn without tools — the audible click confirms the seal is compressed. The connector O-ring, not the barrel thread, is the wet-end barrier; the sealing washer must seat against the mounting bracket face to maintain the IP69K rating.
IO-Link COM3 and programmable output logic
IO-Link COM3 (230.4 kbaud) enables parameter backup, remote configuration, and condition monitoring through the IO-Link master. The sensor transmits the detection state, signal quality, and temperature data over the same 3-wire cable — no additional wiring for diagnostics. The output is PNP with programmable NO+NC logic, so one sensor covers both sinking and sourcing PLC input cards without rewiring. Supply voltage is 10 to 30 VDC, which matches the standard 24 VDC industrial control voltage. The 3-wire DC connection uses the brown (Vcc), blue (GND), and black (output) conductors per IEC 60947-5-2.
