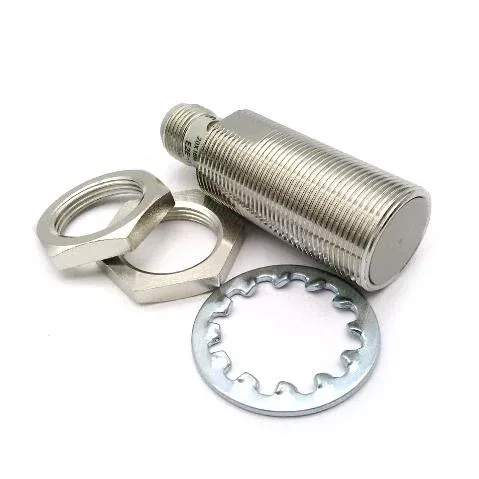

Omron E2E-X10Y1-M1 is a shielded inductive proximity sensor from the E2E series, M30 threaded body, sensing 10 mm ferrous targets through an NO 2-wire AC output circuit rated 20–264 V AC. It switches up to 100 mA with a maximum load current of 300 mA. The M12 connector allows direct replacement without rewiring the cable, and the brass nickel-plated body resists cutting oil.
Mounting and Wiring Notes
Shielded face enables flush mounting in metal; the M30 threaded body installs into a 30 mm hole. The M12 connector mates with a standard cordset—no stripping needed at the sensor. Rated IP67 and NEMA 1, 4, 6, 12, 13, so it withstands washdown and cutting oil environments. Operating temperature range –40 °F to 185 °F covers most industrial floor conditions.
