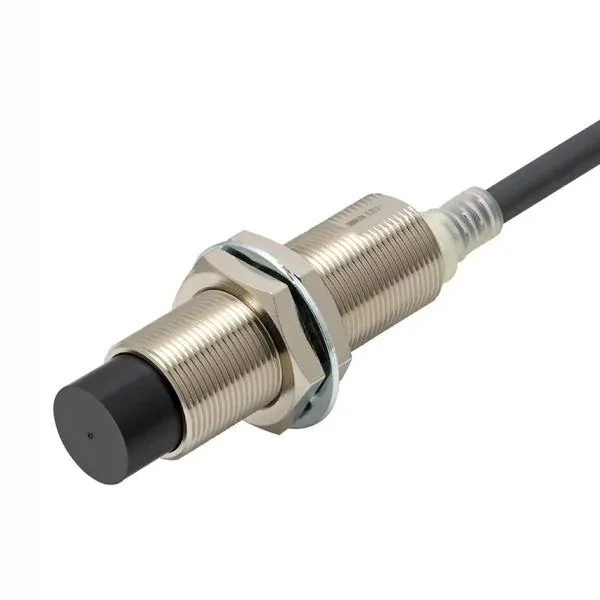

The Omron E2E2-X10MB1 is an inductive proximity switch with a 10 mm flush-mounted sensing range, PNP normally open output, and 25 Hz switching frequency. Rated IP67 with nickel-plated brass housing and PBT sensing face, it handles 12…24 V DC supply. The 2 m cable connection means no separate connector to source.
Omron E2E2-X10MB1 Inductive Prox Switch, 10mm, PNP NO
MPNE2E2-X10MB1
Omron E2E2-X10MB1 Inductive Proximity Switch, 10 mm sensing range, PNP normally open, 25 Hz, IP67, cable 2 m.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | INDUCTIVE PROXIMITY SWITCH |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Switching frequency | 25 Hz |
| Parameter | Value |
|---|---|
| Housing material | Nickel-plated brass |
| Parameter | Value |
|---|---|
| Model | E2E2-X10MB1 |
| Mounting | Non-flush mountable |
| Condition | New |
| Shelf no. | 200205 |
| Sensing distance | 10 mm |
| Connector type | Cable, 2 m |
| IP rating | IP67 |
| Electrical design | PNP |
| Operating voltage | 12 … 24 V DC |
| Sensing face material | PBT |
| Diameter, housing length | 18, 60 mm |
| Ambient operating temperature | -40 …. 85°C |
Product details
MPN
E2E2-X10MB1
