Omron E2E2-X10Y1 — Proximity Sensors

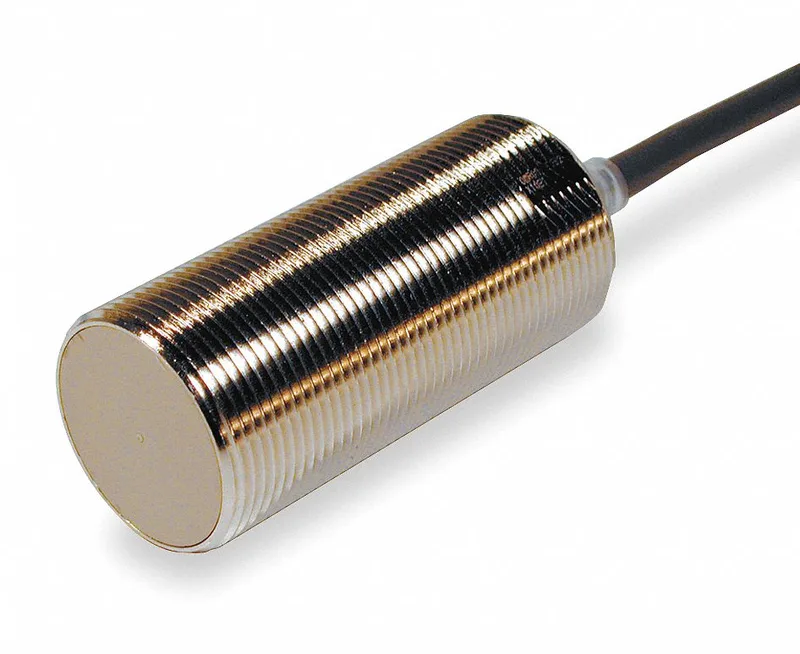

Omron E2E2-X10Y1 Inductive Proximity Sensor, M30 Shielded, 2

MPNE2E2-X10Y1

Omron E2E2 series inductive proximity sensor, M30 shielded, 2-wire AC 20-264V, 10 mm sensing distance, 300 mA load, IP67.

Omron E2E2-X10Y1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2E2-X10Y1 — Identification
ParameterValue
SeriesE2E2
E2E2-X10Y1 — Sensing
ParameterValue
Sensing distance, max. (alt.)10 mm
Sensing methodInductive
Sensing-face shieldingShielded
E2E2-X10Y1 — Electrical
ParameterValue
Supply voltage20-264V AC ; Not Rated
AC supply voltage rating20-264V AC
DC supply voltage ratingNot Rated
Number of wires2
Electrical connectionBare Wire
Electrical installation typePrewired Cable
E2E2-X10Y1 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeAC-Type
Includes indicator lightsIndicator Lights Included
Output circuit2-Wire AC
E2E2-X10Y1 — Mechanical
ParameterValue
Body styleCylindrical
Overall height65 mm
Body materialBrass
E2E2-X10Y1 — Environmental
ParameterValue
Operating temperature, max. (alt.)185 °F
Operating temperature, min. (alt.)-40 °F
IP ratingIP67
E2E2-X10Y1 — Approvals
ParameterValue
Standards / certificationsCCC; CE

Product details

Active production, wide AC supply, robust enclosure

The E2E2-X10Y1: The M30 threaded brass body (nickel-plated) includes a cable protector, increased tightening strength, and a milled section for wrench grip, with a 2 m prewired bare-wire cable. IP67 and NEMA 1, 3, 4, 6, 12, 13 enclosure ratings make it suitable for washdown, outdoor, and dusty environments. CE and CCC certifications support regulatory qualification packages.

Integration and performance notes

The shielded sensing face (M30 threaded, nominal diameter) limits the sensing distance to 10 mm but permits flush mounting in metal — critical when mounting into a machine frame or guard. The 2-wire AC circuit means the sensor is series-connected with the load; confirm the leakage current (minimum 5 mA) is compatible with the input impedance of your PLC or relay. The integral indicator light gives a clear local status for commissioning and troubleshooting. Supply voltage spans 20-264 V AC, so the same sensor works across global line voltages without transformer tap changes.

Frequently asked questions

What output configuration does the E2E2-X10Y1 use?

It is a 2-wire AC sensor (supply voltage 20-264 V AC) with a normally open (NO) output circuit, rated for a maximum load current of 300 mA and a minimum switching current of 5 mA.

What certifications does the E2E2-X10Y1 carry?

The sensor is certified with CE and CCC standards. RoHS, REACH, and UL are not explicitly stated in the available documentation.

Can the E2E2-X10Y1 be mounted flush in metal?

Yes, it is shielded (sensing face shielding is shielded), which allows flush mounting in a metal panel without derating the sensing distance. The nominal sensing distance is 10 mm.

What is the environmental protection rating?

The sensor is rated IP67 and also carries NEMA enclosure ratings of 1, 12, 13, 3, 4, and 6, covering indoor/outdoor use, washdown, and temporary submersion.
