This E2E2-X2Y1 is an inductive prox from Omron's E2E2 series. It's a shielded M12 cylindrical body with a 2 mm sensing distance, 2-wire AC output rated 20-264V AC, and a maximum load current of 200 mA. Built for dirty, wet environments: IP67 and NEMA 1, 3, 4, 6, 12, 13 sealed, with a nickel-plated brass body that resists corrosion and oils. For the guy on the route who's wrenching on a bracket, this sensor has a milled section on the barrel so you can get a grip with a wrench without rounding it off. The cable protector extends the life of the prewired 2-meter cable where vibration is a factor. And the indicator light gives a quick visual check that it's switching. Lifecycle is listed as current, so you can still specify this sensor for new builds or spare parts. Sourced to order against an RFQ—get a quote and lead time for your BOM line.

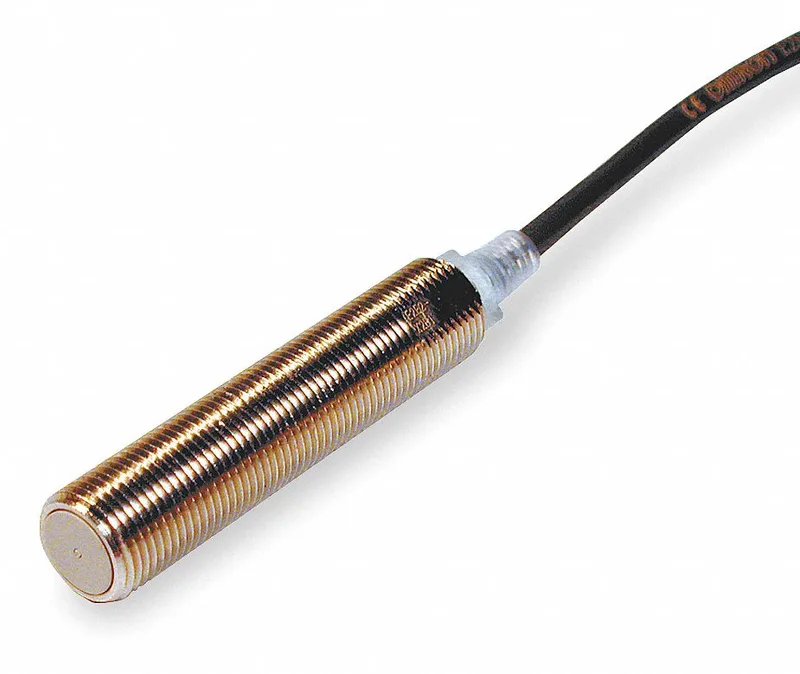

OMRON E2E2-X2Y1 Inductive Proximity Sensor, M12 Shielded, 2m
MPNE2E2-X2Y1
Omron E2E2 Series, E2E2-X2Y1 Inductive Cylindrical Proximity Sensor, M12 Threaded, Shielded, 2 Wires, 20-264V AC, 2 mm Sensing Distance, 200 mA Load, Prewired Cable 2 m, IP67.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E2E2 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 2 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 20-264V AC ; Not Rated |
| AC supply voltage rating | 20-264V AC |
| DC supply voltage rating | Not Rated |
| Number of wires | 2 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | AC-Type |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | 2-Wire AC |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 55 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 185 °F |
| Operating temperature, min. (alt.) | -40 °F |
| IP rating | IP67 |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CCC; CE |
Product details
Frequently asked questions
What are the key certifications for this sensor?
It carries CCC and CE marks.
What features make this sensor easy to install?
The milled section for wrench grip allows a proper torque without damaging the body, and the cable protector reduces stress on the termination.
What is the supply voltage range?
It operates on 20-264V AC only; it is not rated for DC supply.
MPN
E2E2-X2Y1
