Omron E2F-X1R5F1 — Proximity Sensors

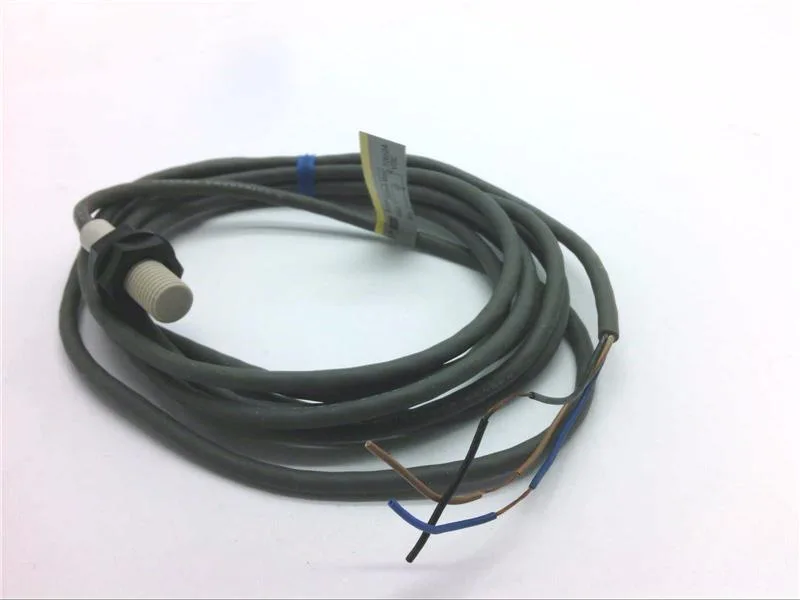

Omron E2F-X1R5F1 Inductive Sensor, M8, PNP NO, 2mm, IP68

MPNE2F-X1R5F1

Omron E2F series, M8 shielded inductive proximity sensor, PNP normally-open, 2mm sensing distance, IP68, 10-30V DC, 2m prewired cable.

$207.48 – $246.46Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E2F-X1R5F1 — Identification
ParameterValue
SeriesE2F
E2F-X1R5F1 — Sensing
ParameterValue
Sensing distance, max. (alt.)2 mm
Sensing methodInductive
Sensing-face shieldingShielded
E2F-X1R5F1 — Electrical
ParameterValue
Supply voltageNot Rated ; 10-30V DC
AC supply voltage ratingNot Rated
DC supply voltage rating10-30V DC
Number of wires3
Electrical connectionBare Wire
Electrical installation typePrewired Cable
E2F-X1R5F1 — Output
ParameterValue
Output circuit contact formNO
Output circuit typePNP
Includes indicator lightsIndicator Lights Included
Output circuitPNP
E2F-X1R5F1 — Mechanical
ParameterValue
Body styleCylindrical
Overall height30 mm
Body materialPolyarylate Resin
E2F-X1R5F1 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP68
E2F-X1R5F1 — Approvals
ParameterValue
Standards / certificationsCCC; CE; CSA; cURus

Product details

M8 Shielded Inductive Sensor – PNP NO, 2 mm

The E2F-X1R5F1 is an M8 threaded cylindrical inductive proximity sensor from Omron's E2F series, shielded for flush mounting in metal. It delivers a 2 mm sensing distance on mild steel, PNP normally-open output, and operates on 10-30V DC with a maximum load current of 200 mA. The sensor body is polyarylate resin, rated IP68 and NEMA 4X for submersion and washdown environments. A 2 m prewired cable with bare ends provides the electrical connection. Certifications include CCC, CE, CSA, and cURus.

Flush mount the M8 shielded barrel into a standard M8 threaded hole or sensor bracket. The 2 m cable allows direct routing to a junction box or PLC I/O card without intermediate breakout. Confirm the PLC input type (sourcing vs sinking) matches the PNP output: the sensor switches the positive line; the load connects between output and 0V. Operating temperature range is -13°F to 158°F; the IP68 seal holds for continuous immersion up to the listed limits.

Frequently asked questions

What is the closest functional alternative — the E2F-X1R5E1?

The E2F-X1R5E1 is the closest sibling, identical in mechanical fit and sensing distance but with NPN output instead of PNP. It will not work as a direct drop-in without changing the wiring logic.

Will the E2F-X1R5F1 drop into a panel specified around the E2F-X1R5E1?

Physically yes – same M8 thread, same mounting depth, same cable. But the output type differs: the X1R5F1 is PNP, the X1R5E1 is NPN. If the panel wiring expects a sinking (NPN) input, the PNP sensor will not trigger correctly without rewiring the load side.

What compliance documentation is available for the E2F-X1R5F1?

The sensor holds CCC, CE, CSA, and cURus certifications. These cover the relevant industrial safety and electromagnetic compatiblity standards for the listed ratings.
