Omron E2K-X15MY2 — Proximity Sensors

Omron E2K-X15MY2 Capacitive Sensor, M30, NC, 12-240VAC

MPNE2K-X15MY2

Omron E2K-X15MY2 capacitive sensor, M30, sensing range 0-10mm, NC output, 12-240VAC, IP66, 2m cable.

$37.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E2K-X15MY2 — Identification
ParameterValue
TypeCapacitive Sensor
E2K-X15MY2 — Output
ParameterValue
Switching outputNormally Closed
E2K-X15MY2 — Mechanical
ParameterValue
Housing materialHeat-resistant ABS resin
E2K-X15MY2 — Environmental
ParameterValue
Operating temperature range-10 … 55°C
E2K-X15MY2 — Other specifications
ParameterValue
ModelE2K-X15MY2
Weight0,2 kg
ConditionNew
Shelf no.240405
DimensionsM30
Sensing distance0 … 10 mm
Connector typeCable,2 m
Type of productCapacitive Sensor
Operating voltage12 … 240 V AC
IP ratingIP66

Product details

Part identity and key specs

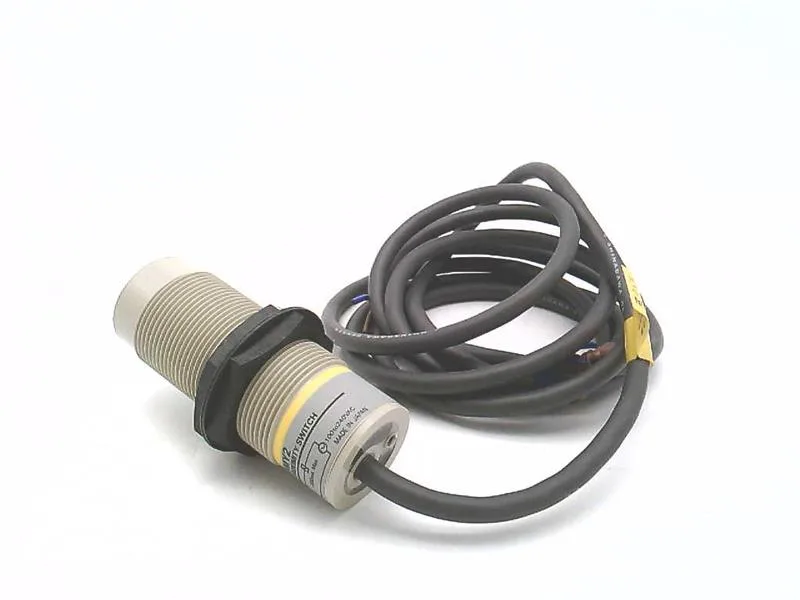

Omron E2K-X15MY2 is a capacitive proximity sensor in an M30 cylindrical body, with a 0-10mm sensing range, normally closed switching output, and a supply range of 12-240 VAC. Housing is heat-resistant ABS resin, cable exit with 2m leads. IP66 rated, -10 to 55°C operating range.

Lifecycle and sourcing note

Listed as current production. No obsolescence notice on record. Wired for a 2-wire AC NC circuit — that configuration has fewer direct alternatives, so if your BOM calls for this exact function, it's worth locking in a supply.

Frequently asked questions

What is the listed type and model of this part?

Type is Capacitive Sensor, model E2K-X15MY2.

Will E2K-X15MY2 drop into a panel wired for E2KQ-X10ME1?

No. The wiring differs (2-wire AC NC vs 3-wire DC NPN-NO) and the supply voltage ranges are incompatible. Rewiring and a different controller input type would be required.

MPN
E2K-X15MY2
