Omron E3AS-HF6000SMT-M1TJ 0.3M — Photoelectric Sensors

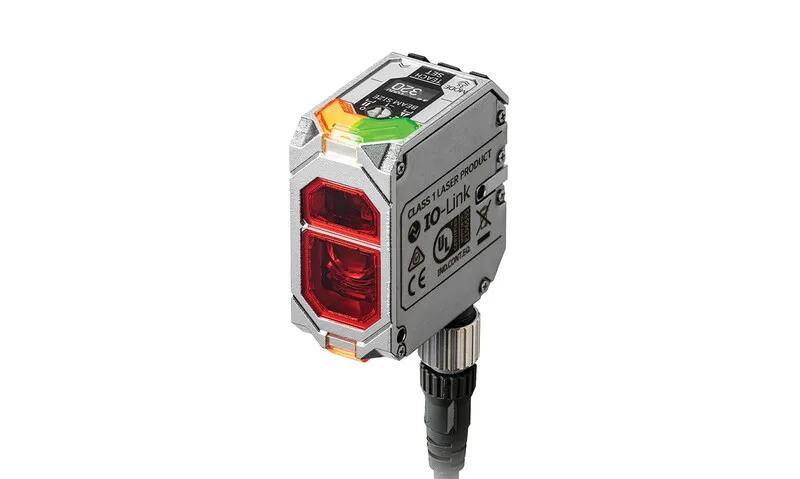

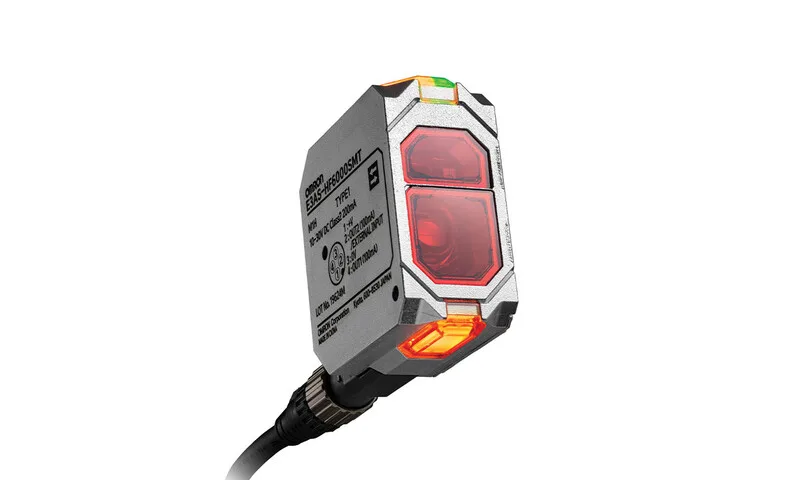

Omron E3AS-HF6000SMT-M1TJ Photoelectric Sensor

MPNE3AS-HF6000SMT-M1TJ 0.3M

E3AS-HF Advanced Time of Flight Sensor|Long Distance Time of Flight Sensor with up to 6m range, ECOLAB and IP69K-rated

Omron E3AS-HF6000SMT-M1TJ 0.3M datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E3AS-HF6000SMT-M1TJ 0.3M — Sensing
ParameterValue
Sensing methodTime-of-flight
Light sourceRed laser
E3AS-HF6000SMT-M1TJ 0.3M — Electrical
ParameterValue
Supply voltage10 to 30 VDC
E3AS-HF6000SMT-M1TJ 0.3M — Connection
ParameterValue
ConnectionM12 Pig-tail Smartclick Connector
E3AS-HF6000SMT-M1TJ 0.3M — Other specifications
ParameterValue
IP67IP67
IP67GIP67G
IP69KIP69K
OutputPNP
IO-LinkCOM3
Body typeRectangular
OperationL-ON/D-ON selectable
Cable length0.3M
Special featureSpot Beam
Housing materialAluminum die cast
Product life cycleNew
Max sensing distance6000 mm
MPN
E3AS-HF6000SMT-M1TJ 0.3M
