Omron E3SAT86 — Photoelectric Sensors

Omron E3SAT86 Photoelectric Sensor, 7 m Through-beam, IP67

MPNE3SAT86

Omron E3SAT86 built-in amplifier photoelectric sensor, through-beam, 7 m sensing distance, 10-30 VDC, IP67, PBT case, pre-wired 2 m or M12 connector.

$145.07 – $172.72Ref. price · indicative, final on quote
Omron E3SAT86 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3SAT86 specifications
ParameterValue
MountingStainless steel (SUS304)
Connector_typeConnector M12 4-Pins
Connection_methodPre-wired (standard length: 2 m) or M12 connector
Operating temperature high-25 … 55 °C
Housing_materialPolybutylene Terephthalate (PBT)
Standard_sensing_objectOpaque: 0-mm dia. min.
CasePBT
LensDenatured polyallylate
Length50
IP ratingIP67
Light_sourceRed LED 660 nm
Product typeBuilt-in Amplifier Photoelectric Sensors
Sensing_typeThrough-beam Sensors
Supply voltage30
Directional_angleBoth Emitter and Receiver: 3° to 15°
Switching current0.02
Switching_output_typePNP
Sensing distance max7000

Product details

Overview

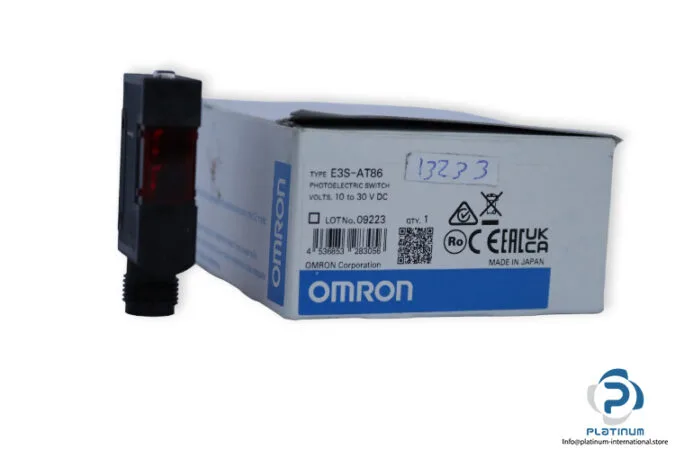

The E3SAT86 is an Omron built-in amplifier photoelectric sensor using a through-beam method to detect opaque objects up to 7 m away, housed in a PBT case with a denatured polyallylate lens. Rated IP67 and NEMA 4X (indoors only), it runs on 10 to 30 VDC and draws 20 mA max per emitter and receiver, with an additional 15 mA when the turbo function is active.

The 7 m sensing distance suits long-range presence detection across conveyors or machine gaps; the 3° to 15° directional angle on both emitter and receiver means alignment is forgiving but still requires the beam path to stay clear of obstructions.

Frequently asked questions

What is the sensing distance and detection mode of the Omron E3SAT86?

Buyers must confirm 7 m through-beam range matches their application before sourcing.

What supply voltage and output configuration does the E3SAT86 support?

Ensures compatibility with 10-30 VDC control systems and NPN/PNP PLC inputs.

What is the difference between the Omron E3S-AT86 and E3S-AT87?

Helps buyers avoid mis-substitution between near-identical SKUs.

What is the IP rating and housing material of the E3SAT86?

Determines suitability for harsh industrial environments.

Where can I buy the Omron E3SAT86 and get a current price?

Direct path to authorized distributor checkouts and stock validation.

Does the E3SAT86 support pre-wired or M12 connector variants?

Affects panel cutout, wiring time, and connector spare selection.
