The E3XA11: The OMRON E3X-A11 is a DIN-rail-mount sensor amplifier for remote photoelectric sensing, rated IP66 so the amplifier body and cable entry tolerate washdown environments — suitable for food-and-bev or outdoor conveyor lines where hose-down is routine. It delivers a pulse-modulated red LED (660 nm) through a separate fiber-optic head, achieving a maximum sensing distance of 2 m. The 200 ms response time is adequate for object-presence detection on slower conveyor or packaging lines but not for high-speed counting. Switching is NPN open-collector, rated 35 mA continuous and 100 mA peak — sized for a PLC input or small relay, not a direct motor load. The operation mode is switch-selectable between Dark-ON, Light-ON, or SET, giving the integrator flexibility without a separate configuration tool.

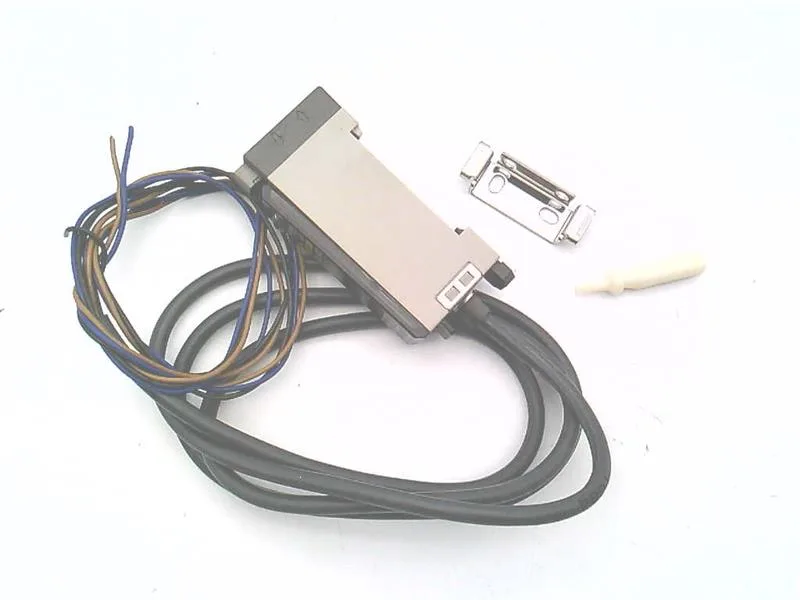

OMRON E3XA11 Sensor Amplifier, NPN, IP66, 2 m Range
MPNE3XA11
OMRON E3X-A11 Sensor Amplifier, NPN, IP66, 2 m sensing range, pulse-modulated red LED, cable 2 m.
$262.64Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Current out | 0.1 A |
| Enclosure_material | Heat-Resistive ABS, Polycarbonate |
| Connector_type | Cable, 3-Wire, 2m |
| Operating temperature high | -25 … 55 °C |
| Dimensions_text | 59 x 12 x 30 mm |
| IP rating | IP66 |
| Light_source | Pulse-Modulated Red LED 660 nm |
| Product type | Sensor Amplifier |
| Has_indicator | Light Indicator (Red), Stability Indicator (Green) |
| Operation_mode | Dark-ON, Light-ON or SET Modes (Switch Selectable) |
| Application_type | Object Detection |
| Response time | 200 |
| Supply voltage | 30 |
| Switching current | 0.035 |
| Switching_output_type | NPN |
| Sensing distance max | 2000 |
Product details
Frequently asked questions
What is the IP rating of the E3XA11?
The E3X-A11 is rated IP66, meaning the amplifier body and cable entry are protected against powerful water jets — suitable for washdown environments.
Where can I buy the OMRON E3XA11?
The E3X-A11 is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.
What is the sensing range of the E3XA11?
The E3X-A11 achieves a maximum sensing distance of 2 m using a pulse-modulated red LED (660 nm) through a separate fiber-optic head.
MPN
E3XA11
