E3Z-D82K-M3J uses an M8 connector (0.3 m pigtail) while the E32D322M has a 2 m cable. Sensing range is 1 m versus 150 mm.
Integration notes
The M8 connector (0.3 m pigtail) needs a compatible female cordset. The supply draws 30 mA max.

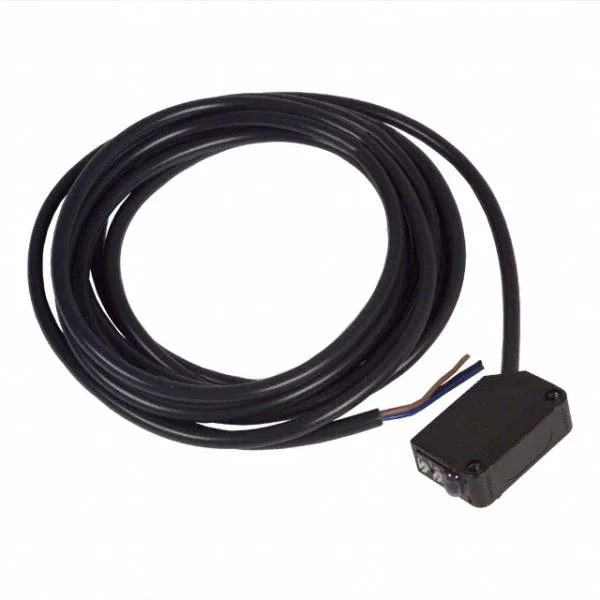

Omron E3Z-D82K-M3J Photoelectric Sensor, Diffuse 1 m IR
MPNE3Z-D82K-M3J
Omron E3Z-D82K-M3J Photoelectric Sensor Built-in Amplifier, Diffuse-reflective, Infrared LED (860 nm), 1 m sensing distance, Pre-wired M8 4-pin connector (0.3 m), 30 mA, 0.03 Kg.
$159.00 – $173.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing method | Diffuse-reflective |
| Sensing distance | 1 m |
| Light source | Infrared LED (860 nm) |
| Parameter | Value |
|---|---|
| Weight | 0.03 Kg |
| Product type | Photoelectric Sensor with Built-in Amplifier |
| Connection method | Pre-wired M8 4-pin connector (0.3 m) |
| Current consumption | 30 mA max. |
Product details
Frequently asked questions
Will the E3Z-D82K-M3J drop into a panel specified around the E32D322M?
No, because the E32D322M uses a 2 m cable while the E3Z-D82K-M3J has an M8 connector (0.3 m pigtail), and the sensing range differs (150 mm vs 1 m). Mechanical dimensions also vary between series. Rewiring is required.
MPN
E3Z-D82K-M3J
