The Omron E3Z-D86 is a photoelectric sensor with built-in amplifier, using an IR light source and diffuse reflective sensing method, rated for 5 to 100 mm. It draws 30 mA max and terminates via connector. This one's current production – no last-time-buy panic, no scavenger hunt. If you're filling a BOM line, it's a straight order.

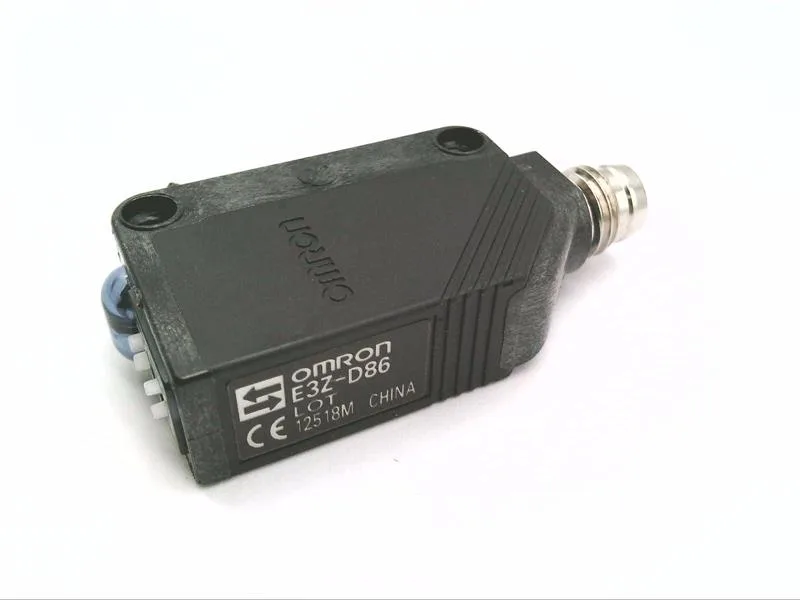

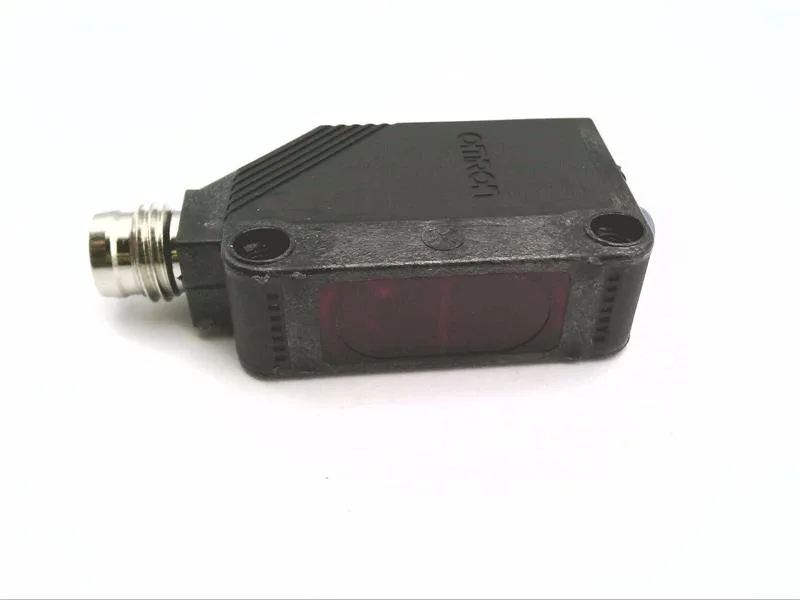

Omron E3Z-D86 Diffuse Reflective IR Sensor
MPNE3Z-D86
Omron E3Z-D86 photoelectric sensor, IR diffuse reflective, 5–100 mm range, 30 mA max, connector.
$57.28 – $60.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing method | Diffuse reflective |
| Sensing distance | 5 to 100 mm |
| Light source | IR |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.06 Kg |
| Product type | Photoelectric Sensor with Built-in Amplifier |
| Connection method | Connector |
| Current consumption | 30 mA max. |
Product details
Frequently asked questions
Will E3Z-D86 drop into a panel wired for E3Z-LT81?
No, because E3Z-LT81 is a through-beam sensor (emitter + receiver) with a red laser and 60 m range, while E3Z-D86 is a single-unit diffuse reflective IR sensor with 100 mm range. Wiring and sensing method are different.
