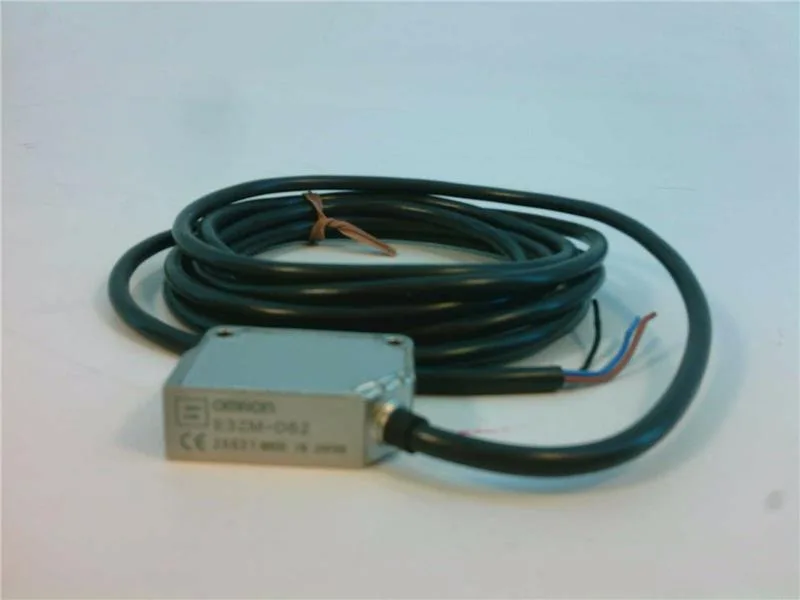

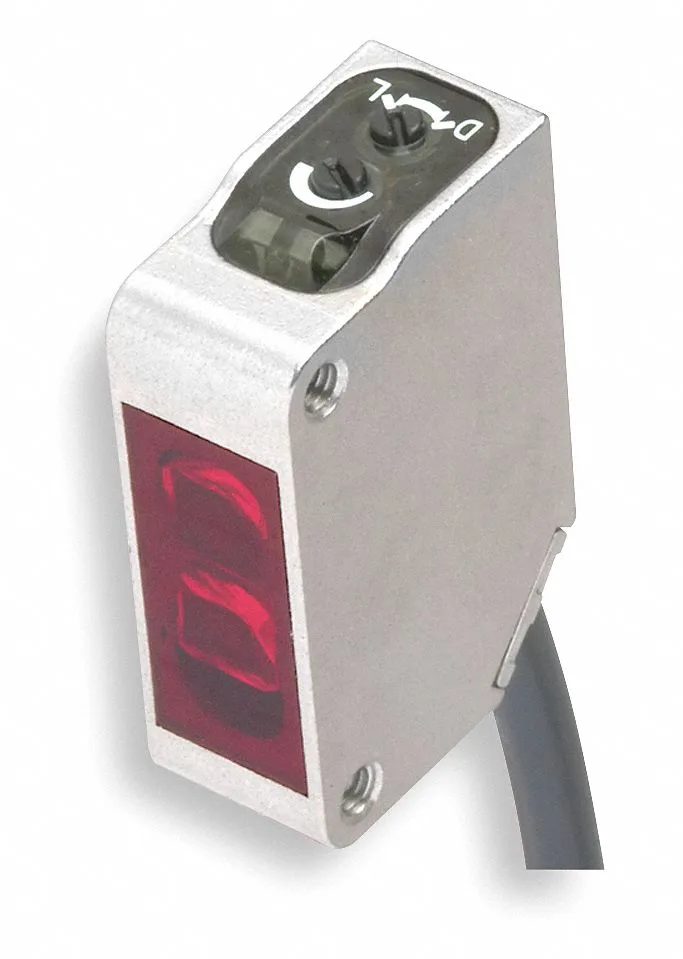

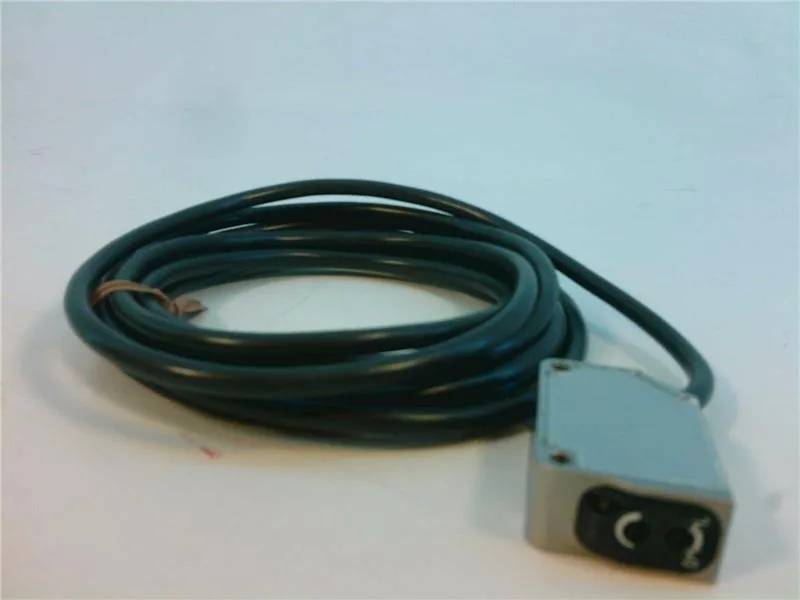

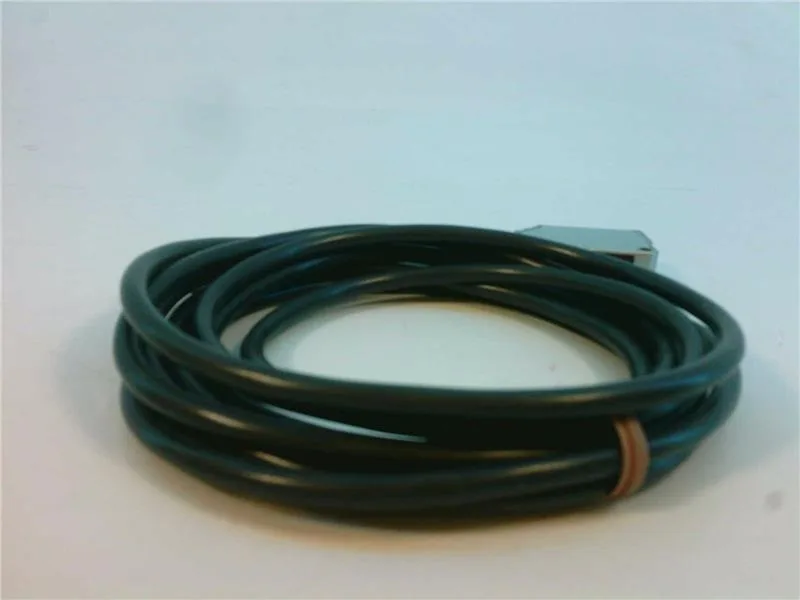

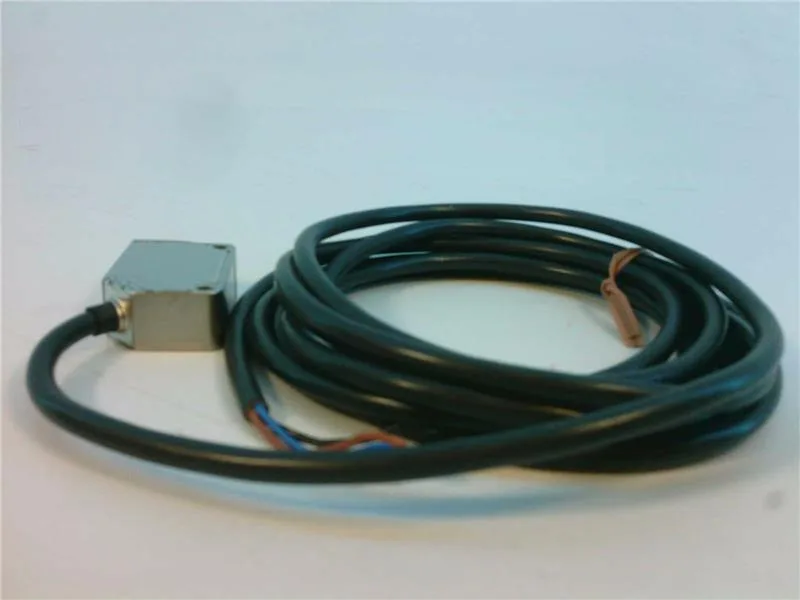

Omron E3ZM-D62 2M — Photoelectric Sensors

Omron E3ZM-D62 2M Diffuse Photoelectric Sensor, NPN, 1m

MPNE3ZM-D62 2M

Omron E3ZM-D62 2M diffuse photoelectric sensor, NPN output, 10-30 V DC, 1 m sensing distance, stainless steel body, IP67/IP69K, prewired 2 m cable.

$98.43Ref. price · indicative, final on quote
Omron E3ZM-D62 2M datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3ZM-D62 2M — Identification
ParameterValue
SeriesE3ZM
E3ZM-D62 2M — Sensing
ParameterValue
Sensing methodDiffuse
Response time1 msec
E3ZM-D62 2M — Electrical
ParameterValue
Supply voltage10-30V DC
E3ZM-D62 2M — Environmental
ParameterValue
IP ratingIP67; IP69K
Operating temperature, max.131 °F
E3ZM-D62 2M — Mechanical
ParameterValue
Body materialStainless Steel
E3ZM-D62 2M — Approvals
ParameterValue
Standards / approvalsCE

Product details

The Omron E3ZM-D62 2M is a diffuse-reflective photoelectric sensor with a 1 m sensing distance, switching at 1 msec. It runs on 10-30 V DC and outputs a 100 mA NPN signal, selectable Light-On or Dark-On. Stainless steel body and IP67/IP69K ratings mean this sensor handles high-pressure washdown without sealing worries. That's another SKU I don't need to bag for spare.

Sourcing this part

This part is sourced on an RFQ basis; lead time varies. No direct cross is confirmed; use the original order code.

Frequently asked questions

What is the sensing distance of the Omron E3ZM-D62 2M?

1 m maximum for diffuse reflection.

Is the Omron E3ZM-D62 2M NPN or PNP output?

NPN output, 100 mA switching capacity.

What is the IP rating of the Omron E3ZM-D62 2M sensor?

IP67 and IP69K rated, suitable for washdown environments.

What is the difference between E3ZM-D62 and E3ZM-D62 2M?

The '2M' suffix indicates the prewired cable length is 2 meters. The base E3ZM-D62 may have a different cable length or connector type.

Will E3ZM-D62 2M drop into a panel that was specified around E3T-FD13 without rewiring?

No. The E3ZM-D62 2M has NPN output (E3T-FD13 is PNP) and a 1 m sensing distance versus 30 mm, so both wiring and mounting position would need changes.

MPN
E3ZM-D62 2M
