Omron E3ZM-R61 2M — Photoelectric Sensors

Omron E3ZM-R61 2M Retroreflective Sensor, 4m, NPN, IP69K

MPNE3ZM-R61 2M

Omron E3ZM series, retroreflective photoelectric sensor, E3ZM-R61 2M, NPN, 10-30V DC, 4 m sensing distance, IP67/IP69K, stainless steel body, 2 m cable.

$84.58Ref. price · indicative, final on quote
Omron E3ZM-R61 2M datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3ZM-R61 2M — Identification
ParameterValue
SeriesE3ZM
E3ZM-R61 2M — Sensing
ParameterValue
Sensing methodRetroreflective
Response time1 msec
E3ZM-R61 2M — Electrical
ParameterValue
Supply voltage10-30V DC
E3ZM-R61 2M — Environmental
ParameterValue
IP ratingIP67; IP69K
Operating temperature, max.131 °F
E3ZM-R61 2M — Mechanical
ParameterValue
Body materialStainless Steel
E3ZM-R61 2M — Approvals
ParameterValue
Standards / approvalsCE

Product details

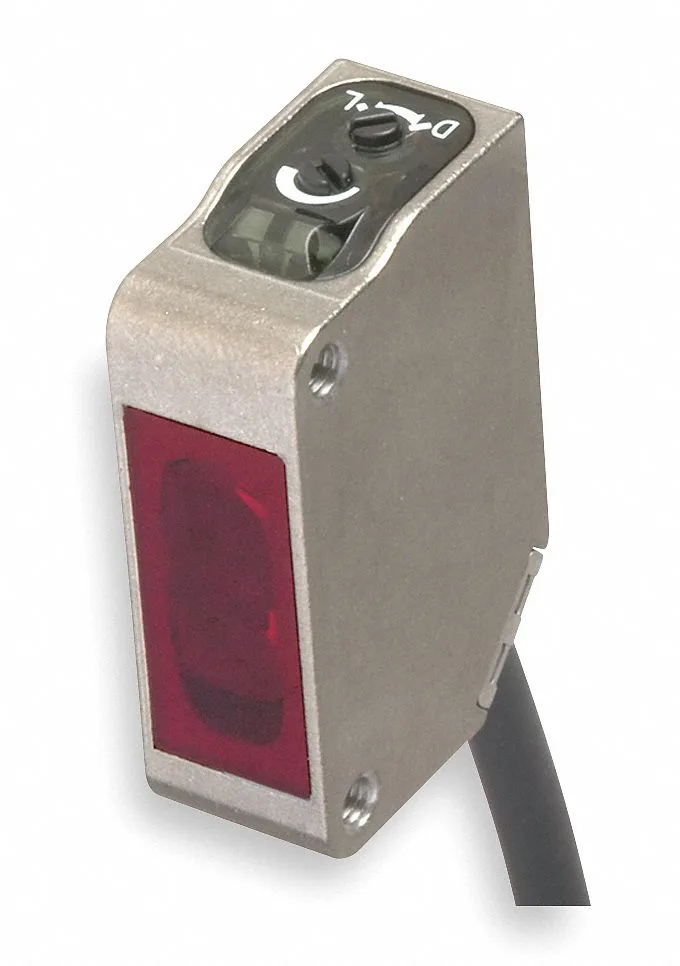

The E3ZM-R61 2M: Stainless steel rectangular body rated IP67 and IP69K — takes the caustic CIP cycle without corrosion. Retroreflective with Mirror Surface Rejection (MSR) so polished tanks or bright packaging won't ghost a false presence. 100 mm minimum to 4 m sensing range, red LED emitter, selectable light-on/dark-on. NPN output sinks up to 100 mA; supply is 10-30V DC via the prewired 2 m cable. Response time 1 msec.

Production status and sourcing

Listed as current production. No official successor — this is the active revision.

Mounting and wiring in the panel

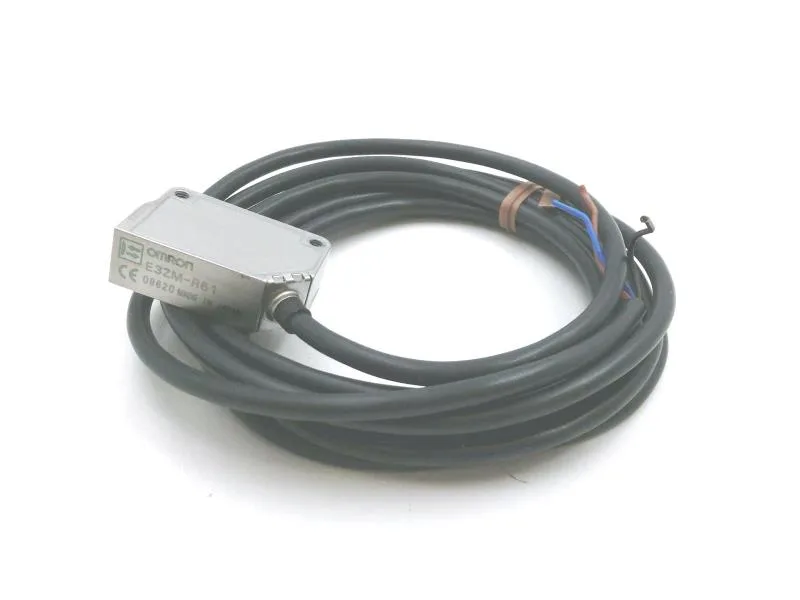

Rectangular body: 11 mm wide, 32 mm high, right-angle sensing face. Prewired 2 m bare-end cable. Wire NPN output to a sinking PLC input: connect the load between the output (dark/light selected) and +V supply, common to 0V. Maximum load 100 mA — indicator or relay, not a contactor coil directly. IP69K means it survives high-pressure hot washdown; stainless clamps recommended for hygienic mount.

Frequently asked questions

What is the E3ZM-R61 2M wiring diagram for NPN output on 10-30V DC?

NPN sinking output: connect the load between the output terminal and +V supply (10-30V DC), and connect the sensor common (blue wire) to 0V. The output switches to low when triggered. Max load 100 mA.

Will E3ZM-R61 2M drop into a panel that was specified around E3ZM-T61 2M without rewiring?

No. The T61 is a through-beam pair requiring separate emitter and receiver wiring; the R61 is a single retroreflective unit. The sensing method and cable connections are different, so rewiring is necessary.
