Through-beam set for washdown and long-reach detection

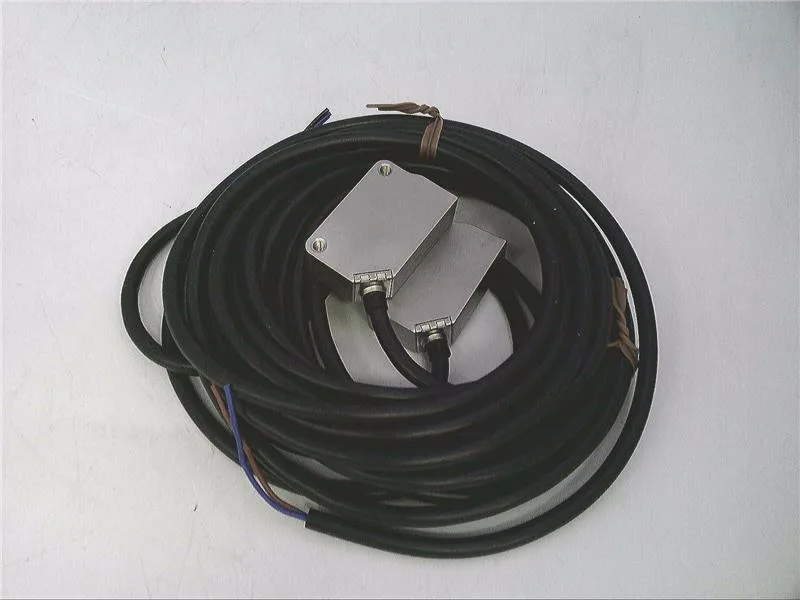

The Omron E3ZM-T61 2M is a through-beam photoelectric sensor set with a 15 m sensing range, NPN output, and a stainless steel body rated IP67/IP69K. It operates on 10-30 V DC and detects opaque objects as small as 12 mm diameter. The 2 m prewired cable terminates in bare wires, making it a field-terminated drop-in for conveyor, packaging, or food-processing lines where high-pressure cleaning is routine. Because the sensor carries CE marking and is built in stainless steel, customs clearance into regulated markets (EU, UK, US) is straightforward — the IP69K rating and stainless housing satisfy many food-safety and washdown directives without additional enclosure documentation. That compliance adds no paperwork delay at the port.
Mounting and connection notes

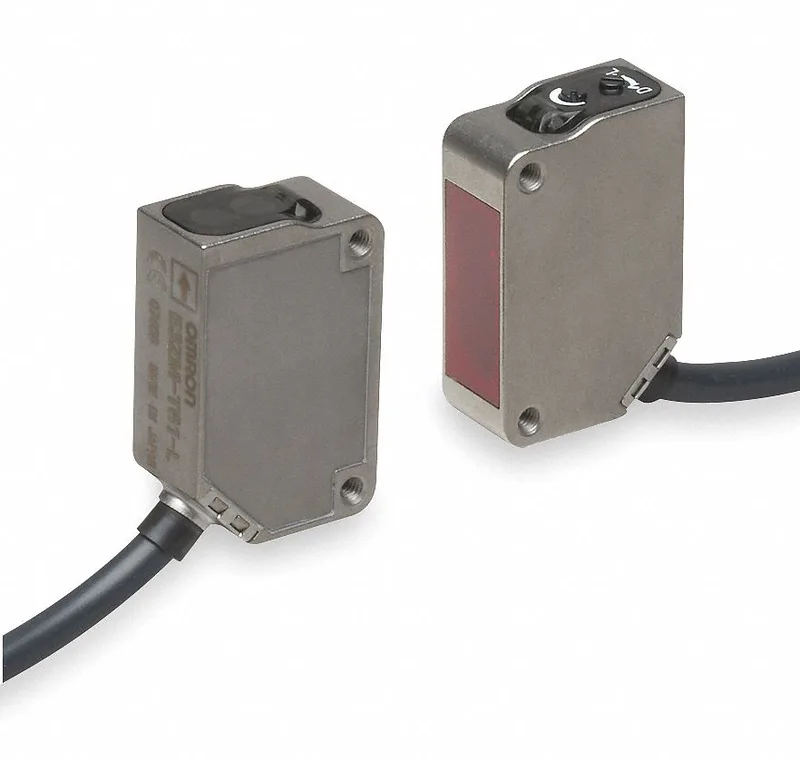

The rectangular body measures 32 mm high, 21 mm deep, and 11 mm wide — small enough for tight conveyor frames. The bare-wire cable exits the right-angle face, so plan conduit entrance accordingly. Supply voltage is 10-30 V DC; maximum load current is 100 mA. Response time is 1 ms, sufficient for counting at moderate line speeds. Switching mode is selectable light-on or dark-on; the indicator LED confirms state. Stainless steel body resists corrosion, and IP67/IP69K ratings suit washdown environments. Rated temperature range is -13 °F to 131 °F.
