Omron E3ZT81M3J03MOMS — Photoelectric Sensors

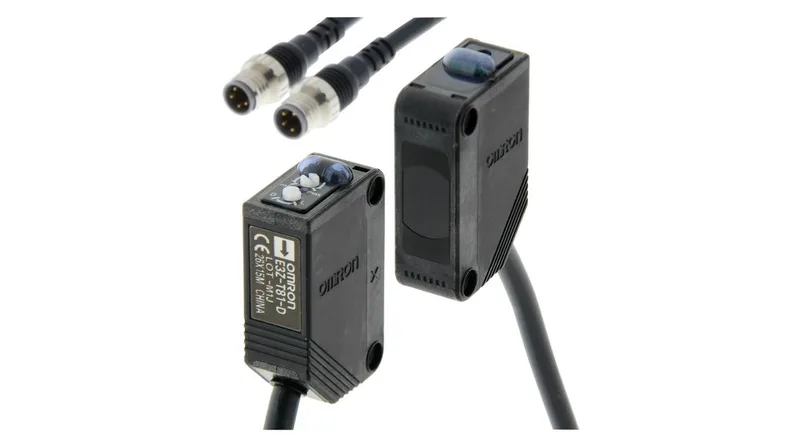

Omron E3ZT81M3J03MOMS Retro-Reflective Sensor PNP 15m

MPNE3ZT81M3J03MOMS

Omron E3Z series, retro-reflective photoelectric sensor, PNP output, 15 m sensing distance, 12-24 VDC, IP67, pre-wired.

Omron E3ZT81M3J03MOMS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3ZT81M3J03MOMS — Identification
ParameterValue
SeriesE3Z
Sensor typeRetro-Reflective Sensor
E3ZT81M3J03MOMS — Sensing
ParameterValue
Sensing distance, max.15 m
Response time1 ms
Light typeLED, Infrared
E3ZT81M3J03MOMS — Electrical
ParameterValue
Operating voltage, min.12 V
Operating voltage, max.24 V
E3ZT81M3J03MOMS — Output
ParameterValue
Output typePNP
Switching typeLight-ON / Dark-ON
E3ZT81M3J03MOMS — Connection
ParameterValue
Termination typePre-Wired
E3ZT81M3J03MOMS — Environmental
ParameterValue
Protection rating (IP)IP67
Operating temperature, min.-25 °C
Operating temperature, max.55 °C
E3ZT81M3J03MOMS — Mechanical
ParameterValue
Length20 mm
Width10.8 mm
Height31 mm

Product details

E3ZT81M3J03MOMS is an Omron E3Z-series retro-reflective photoelectric sensor with a PNP output and a 15 m sensing distance using an infrared LED. Pre-wired with IP67 sealing, it operates on 12–24 VDC and switches in 1 ms (Light-ON / Dark-ON selectable). The 10.8 mm wide housing fits E3Z-standard DIN-rail footprints.

Infrared vs red LED – E3ZT81M3J03MOMS compared to E3ZLR81M1J03MOMS

Both are retro-reflective PNP sensors in the same 10.8 mm-wide E3Z package. The E3ZT81M3J03MOMS uses an infrared LED and covers 15 m; the E3ZLR81M1J03MOMS uses a visible red LED and is rated for 7 m. If your existing panel was wired for a pre-wired retro-reflective sensor, either will drop into the same slot (same dimensions, same wiring scheme). Choose the 15 m version when longer range or infrared wavelength is required for background suppression or ambient light rejection.

Integration notes

Pre-wired with IP67 sealing. 1 ms response time; 15 m sensing distance.

Frequently asked questions

Will the E3ZT81M3J03MOMS fit a panel designed for the E3ZLR81M1J03MOMS without rewiring?

Yes. Both sensors share the same footprint (10.8 mm wide, 31 mm tall, 20 mm depth), same pre-wired termination, and same 12–24 VDC PNP pinout. The only difference is the light source (infrared vs visible red) and the resulting sensing range (15 m vs 7 m).
