Through-Beam at 5 mm – SX67 Series

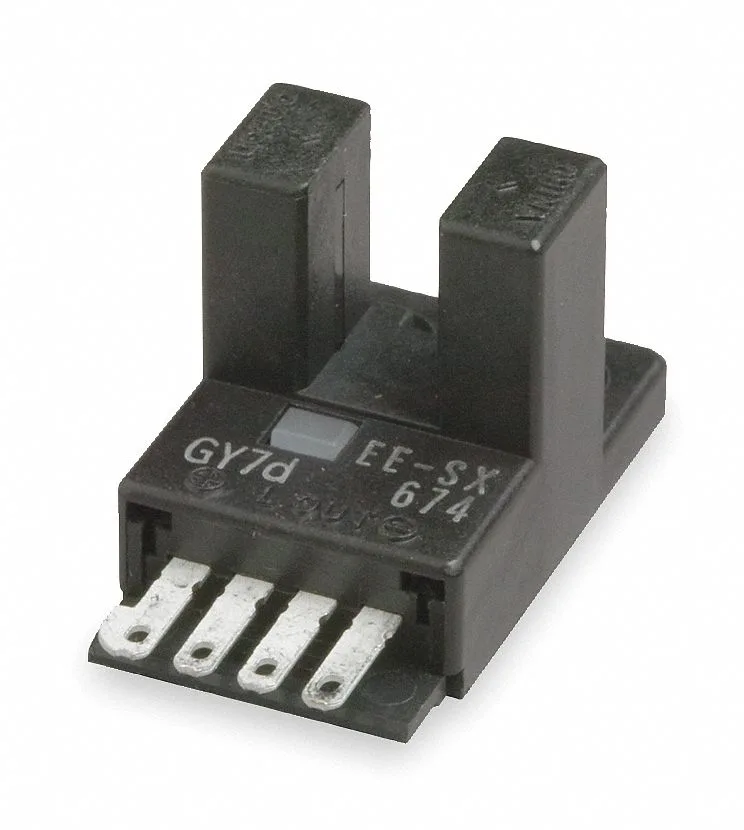

The EE-SX674P is an Omron SX67 through-beam photoelectric sensor with a 5 mm sensing distance, detecting opaque objects down to 2 mm × 0.8 mm. Output is PNP, selectable Light On or Dark On, switching at 3 kHz with a 0.17 ms response time. Supply voltage range is 5–24 V DC, load current maximum 50 mA. The sensor includes output short-circuit protection and an integral indicator light. Housed in a PBT body rated IP50, it uses close-mount style with solder terminals and emits infrared light.
