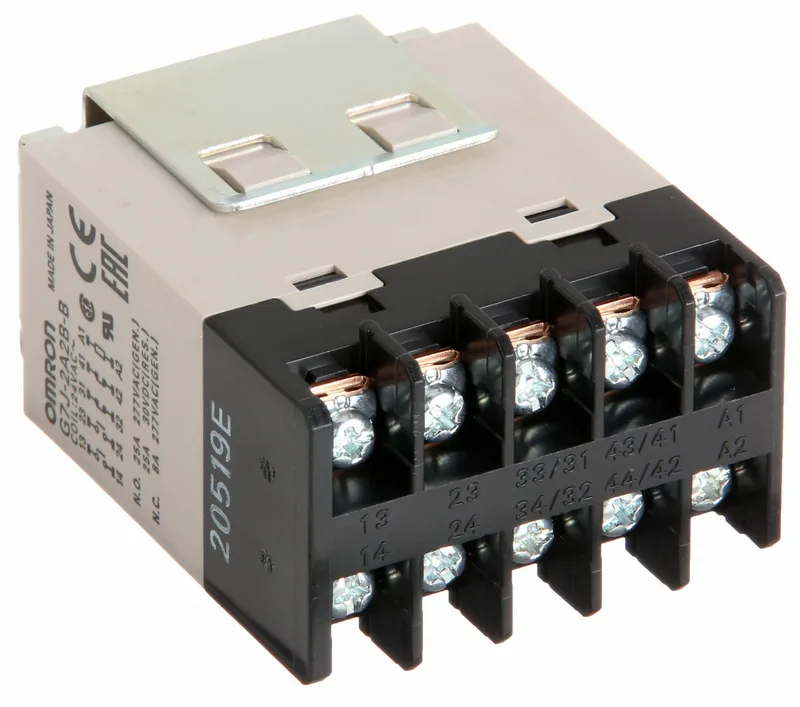

Omron G7J-2A2B-B-W1-AC24
MPNG7J-2A2B-B-W1-AC24
OMRON Enclosed Power Relay: Bracket Mounted, 25 A Current Rating, 24V AC, 10 Pins/Terminals
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | G7J Series |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | DPST-NC; DPST-NO |
| Contact rating (AC) | 8 A @ 240V (NC)25 A @ 240V (NO) |
| Mechanical life (operations) | 1,000,000 |
| Electrical life (operations) | 100,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 24V AC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 2,000V AC between Contacts of the Same Polarity; 4,000V AC between Coil and Contact; 4,000V AC between Contacts of Different Polarity |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | Manual Push Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | Bracket |
| Electrical connection type | Screw |
| Number of pins/terminals | 10 |
MPN
G7J-2A2B-B-W1-AC24
