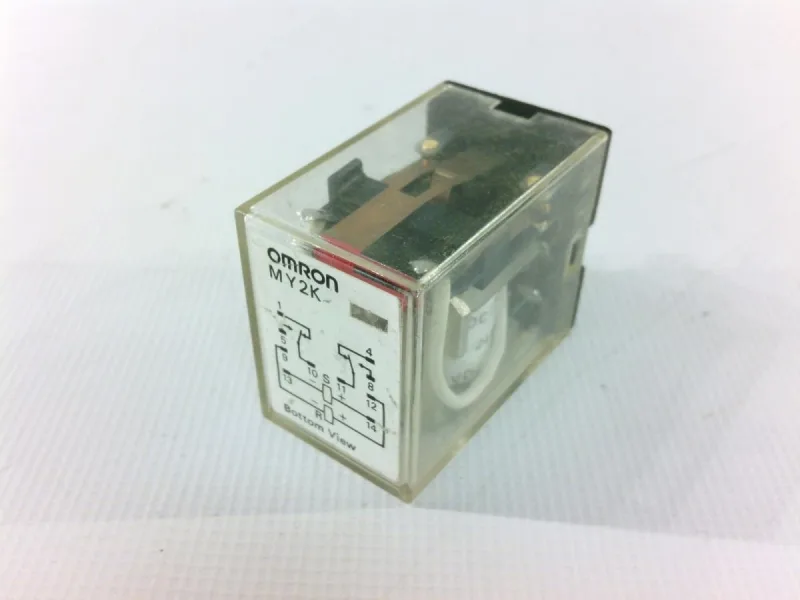

Omron MY2K DC24
MPNMY2K DC24
Plug In Latching Power Relay, 24V dc Coil, 3A Switching Current, DPDT
$38.16 – $94.71Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | MY Series |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Contact rating (AC) | 0.8 A @ 220V3 A @ 220V |
| Mechanical life (operations) | 100,000,000 |
| Electrical life (operations) | 200,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 24V DC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 1,000V AC between Set Coil and Reset Coils; 1,500V AC between Coil and Contacts; 1,500V AC between Contacts of Different Polarity |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | Mechanical Flag |
| Push-to-test button | No Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Pin |
| Number of pins/terminals | 14 |
Other specifications
| Parameter | Value |
|---|---|
| Sealing | Enclosed |
| Socket code | G |
| Current rating | 3 A |
| Contact rating | 1.5 A @ 24V3 A @ 24V |
| Coil voltage (Nominal@60Hz) | 24V DC |
MPN
MY2K DC24
