Where it sits in the panel

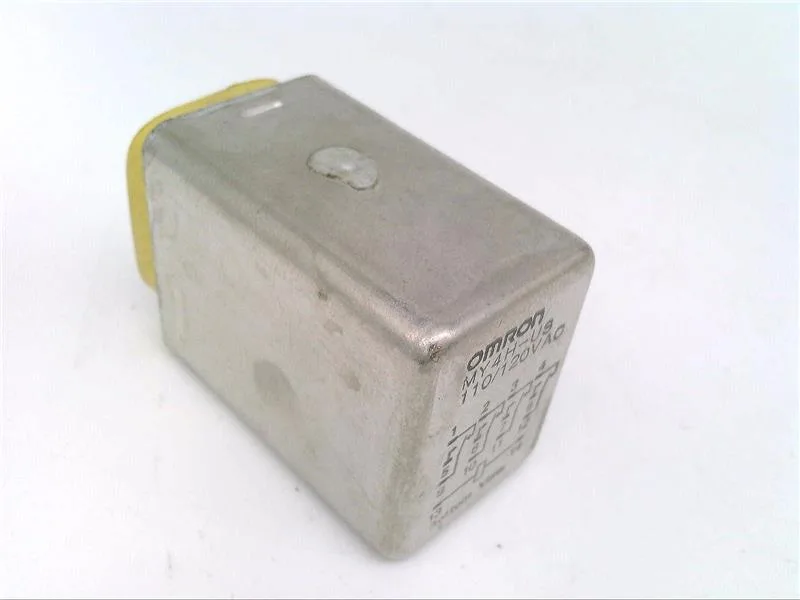

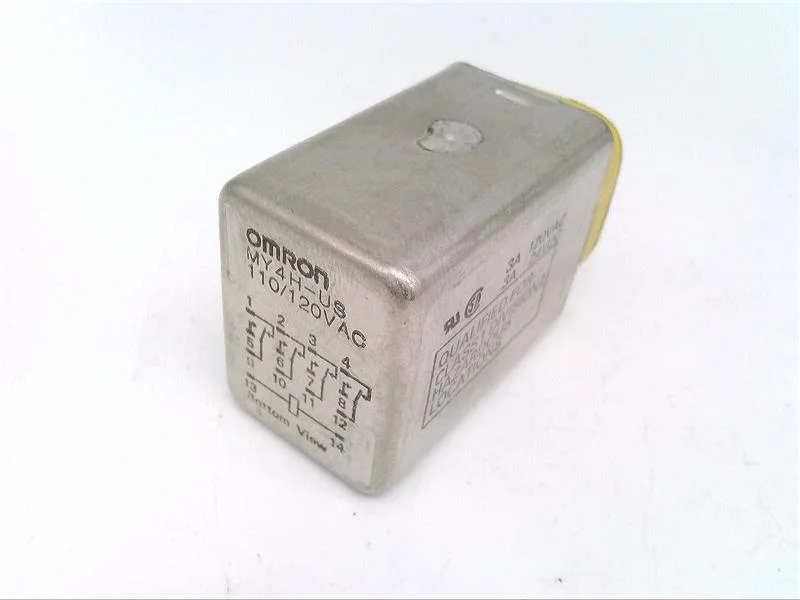

The Omron MY4H-US-AC110/120 is an enclosed MY Series relay with a 4PDT contact set and a 120V AC coil, built for socket-mount installation in control panels where four independent circuits need to switch from a single logic-level trigger. The 14-pin footprint lands on the standard Omron PYF-style socket, so panel wiring is a clip-in rather than a hard-mount job.
Contact ratings and what they actually switch
Contacts are rated 3 A at 120V AC and 3 A at 24V DC, so the relay comfortably handles pilot-duty loads and small motor or solenoid coils but is not the part for a branch-circuit feeder. The motor-rated rating adds 1/6 hp capability at both 120V AC and 240V AC — enough for small fractional-horsepower loads like damper actuators, small fans, or pump contactors, not for driving a three-phase motor directly. The tab-style electrical connection pairs with a standard 14-pin socket, so field replacement is a pull-and-replace rather than a rewire. There is no mechanical status indicator and no push-to-test button on this variant, so the only way to confirm state at the panel is to meter the coil or the load side — worth noting before a commissioning walk-down.
Sealing and deployment context

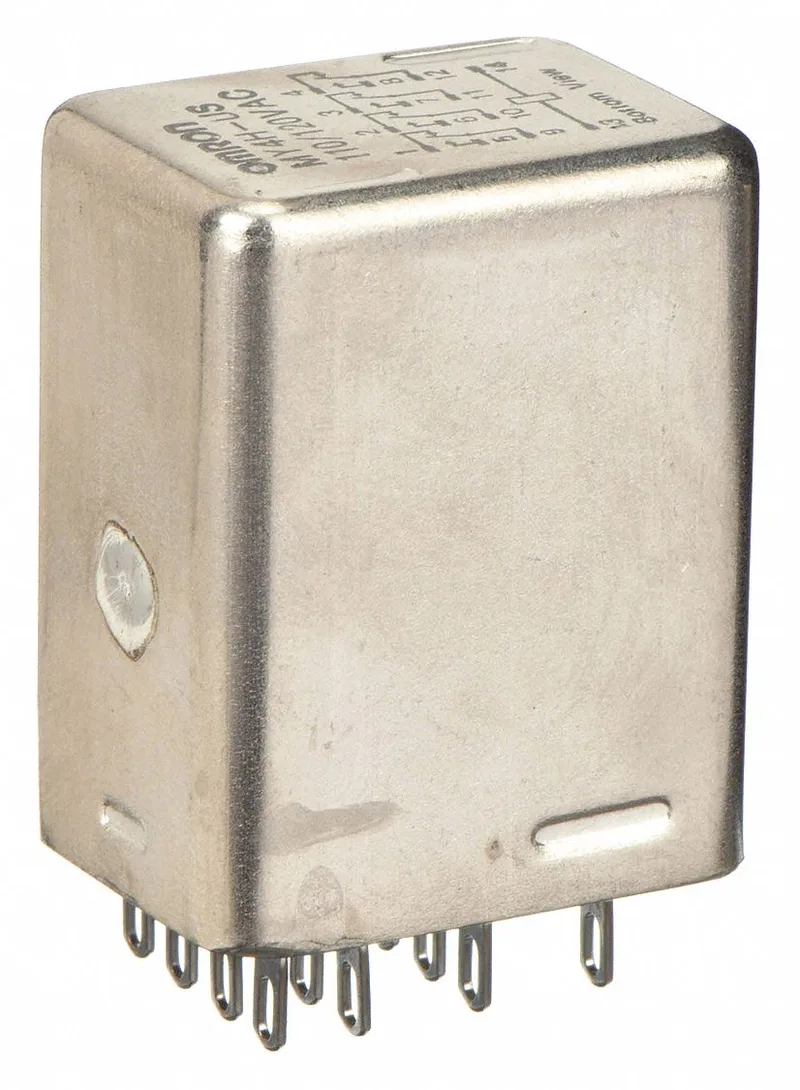

The hermetically sealed enclosure on this variant is the differentiator — dust and contaminants stay out of the contact chamber, so the relay is a sensible pick for paper-mill control cabinets, food-processing washdown areas, or any panel that breathes dusty or humid plant air. The trade-off is sealed construction: if the coil fails, the relay is replace-only, not field-serviceable.
Lifecycle stage is recorded as mature — a long-standing catalogue part rather than a recent release, which means cross-references and socket compatibility are well established across the installed base. No official successor is recorded against this order code, so replacement strategy is another MY4H sealed unit rather than a redesigned next-generation relay.
