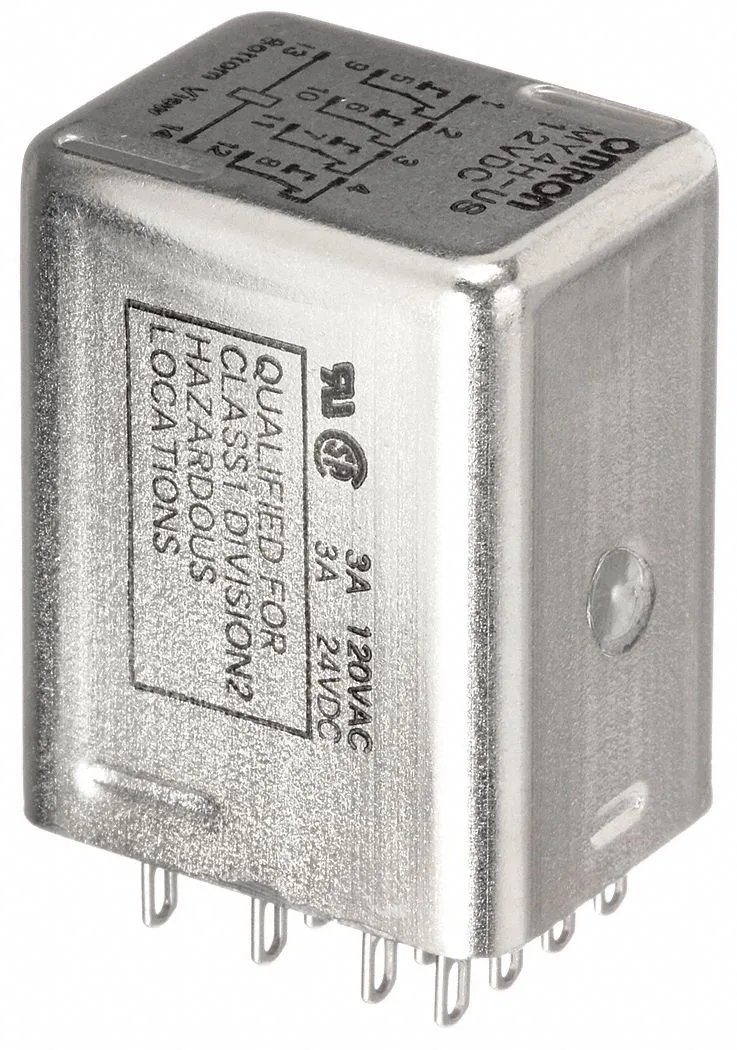

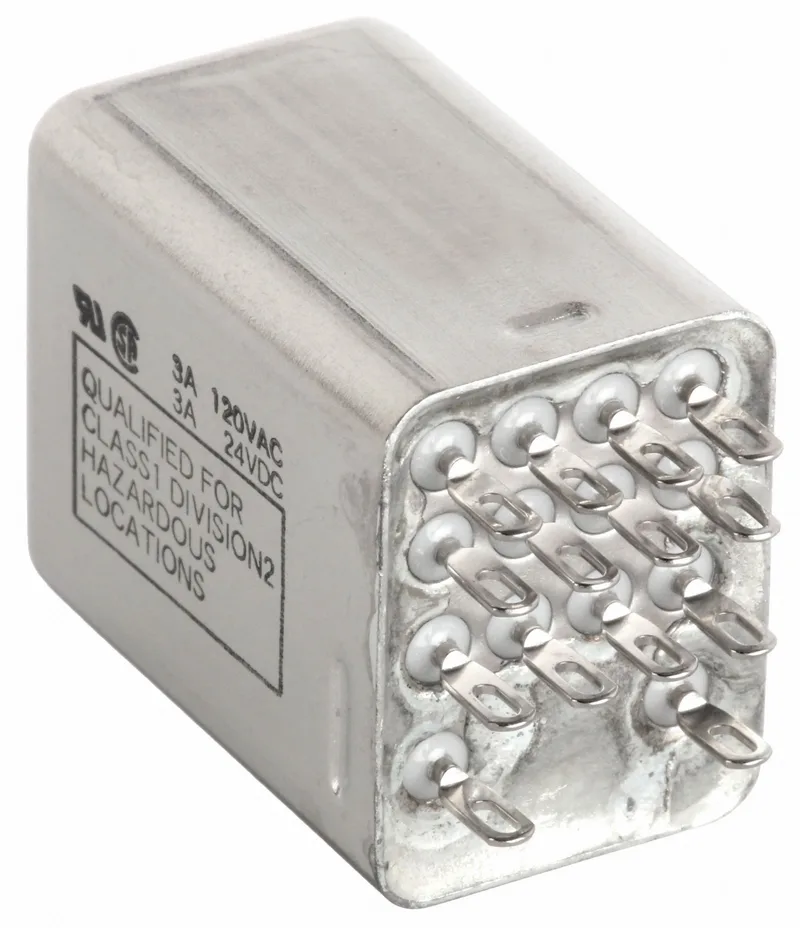

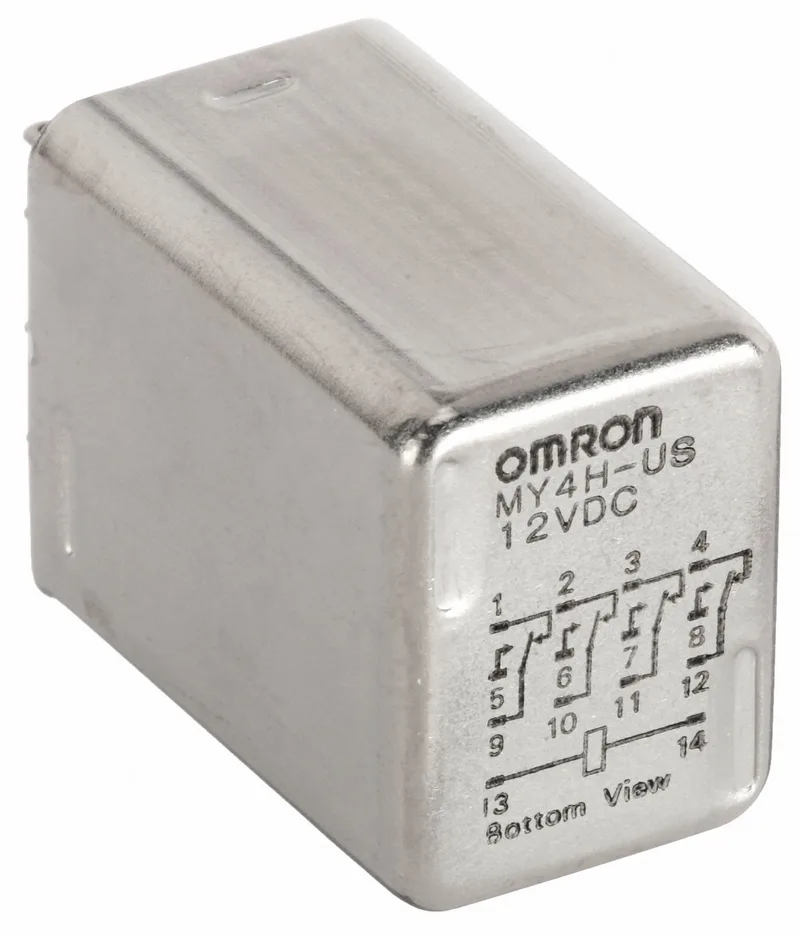

Omron MY4H-US-DC12
MPNMY4H-US-DC12
OMRON Hermetically Sealed Relay: Socket Mounted, 3 A Current Rating, 12V DC, 14 Pins/Terminals, 4PDT
$88.85 – $121.25Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | MY Series |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | 4PDT |
| Contact rating (AC) | 3 A @ 120V |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 12V DC |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | No Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | Socket |
| Electrical connection type | Tab |
| Number of pins/terminals | 14 |
Other specifications
| Parameter | Value |
|---|---|
| Sealing | Enclosed |
| Motor rated | Yes |
| Socket code | G |
| Current rating | 3 A |
| Contact rating | 3 A @ 24V |
| Horsepower @ 120V AC | 1/6 hp |
| Horsepower @ 240V AC | 1/6 hp |
| Coil voltage (Nominal@60Hz) | 12V DC |
MPN
MY4H-US-DC12
