Omron D4SLN2NFGDN

Omron D4SLN2NFGDN Guard Lock Safety-Door Switch, 2NO/4NC, IP

MPN D4SLN2NFGDN

Omron D4SL series, guard lock safety-door switch, D4SLN2NFGDN, 2NO/4NC contacts, IP67, connector termination.

$88.01 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

D4SLN2NFGDN specifications
ParameterValue
SeriesD4SL
Lock typeGuard Locking
TypeSafety-Door Switch
ActuationKey
IP ratingIP67
Depth39 mm
Width39 mm
Height155 mm

Product details

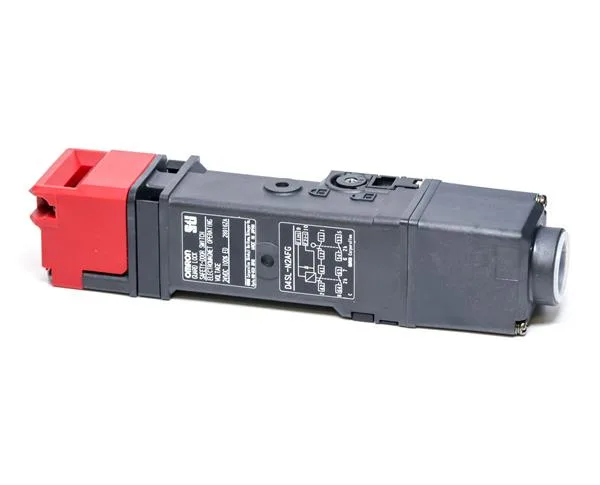

The Omron D4SLN2NFGDN is a guard lock safety-door switch from the D4SL series, with a 2NO / 4NC contact configuration. It uses a key-type actuator and terminates via a connector, rated IP67 for washdown environments. Switching capacity is 1.5 A at 120 VAC or 220 mA at 125 VDC, with an electrical service life of 150,000 cycles and a mechanical life of 1 million cycles.

Dimensions are 39 mm wide by 39 mm deep by 155 mm tall. The head can be oriented in four directions, which simplifies alignment with the guard door. The connector termination reduces wiring time compared to a hardwired gland entry, but verify the mating connector part number separately — the switch ships without one.

MPN
D4SLN2NFGDN
