Omron J7KNA0901R24D

J7KNA0901R24D contactor, 3-pole 24VDC 9A 4kW

MPN J7KNA0901R24D

J7KNA Series, Contactor, 3 Pole, 24 VDC Coil, 9 A AC, 4 kW, 7.5 HP, DIN Rail/Screw Mount, Screw Terminal.

$56.90 – $167.40 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

J7KNA0901R24D specifications
ParameterValue
SeriesJ7KNA
Poles3
MountingDIN Rail, Screw

Product details

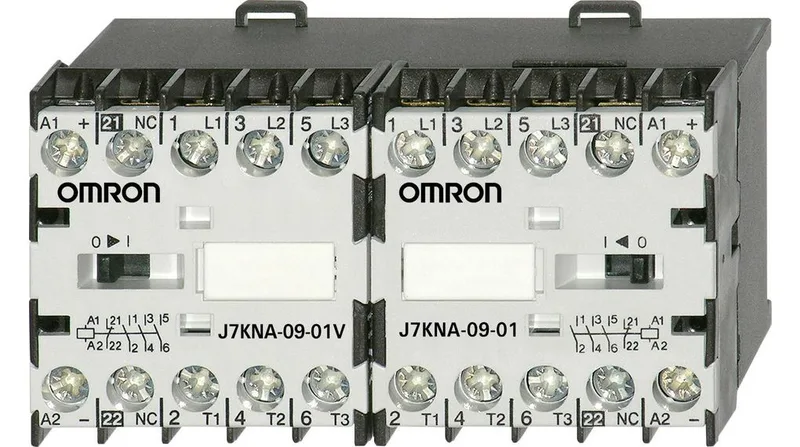

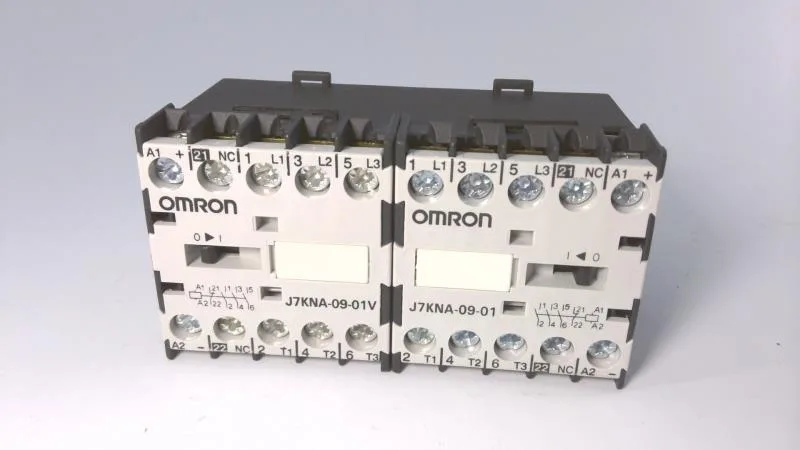

The J7KNA0901R24D is a 3-pole contactor from the J7KNA series, designed for switching motor loads up to 7.5 HP. Its 24 V DC coil and 9 A AC switching current (4 kW at 690 V) make it suitable for small to medium motor control in panels. The contactor carries one normally-closed auxiliary contact alongside the three normally-open main contacts.

The 24 V DC coil holds at nominal voltage, and the auxiliary 1NC contact allows interlocking or status feedback without an additional block.

MPN
J7KNA0901R24D
