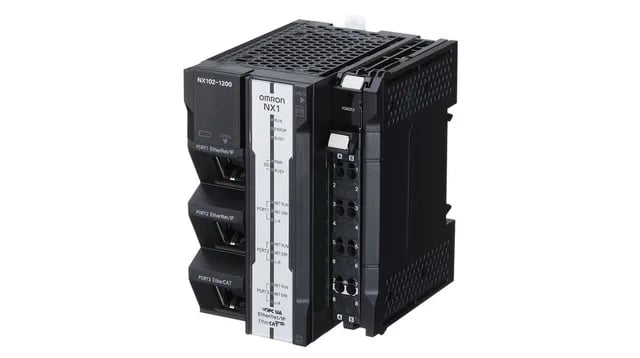

Omron NX1021220 NX1 PLC CPU 5MB EtherCAT EtherNet/IP 64 Axes | aoctrl

MPN NX1021220

Omron NX1 series PLC, NX1021220, 24 V, 5 MB program capacity, 33.5 MB data memory, EtherCAT/EtherNet/IP, DIN rail or panel mount.

$3,714.50 – $7,283.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

NX1021220 specifications
ParameterValue
SeriesNX1

Product details

Multi-axis machine controller with EtherCAT motion and EtherNet/IP enterprise connectivity

The Omron NX1021220 is the mid-range CPU in the NX1 series, offering 5 MB of program memory and 33.5 MB of data memory. This is a single-box controller that runs the real-time motion ring on EtherCAT while the HMI and upstream SCADA/MES talk EtherNet/IP on a separate port — no protocol converter, no gateway, no extra rack slot. The CPU handles up to 64 EtherCAT axes and supports the full PLCopen motion function blocks (MC_Power, MC_MoveAbsolute, MC_GearIn, etc.) in Sysmac Studio.

The NX102 uses an Intel Atom processor with a 1 ms cycle time floor for the primary task. For a packaging machine with eight servo axes, a registration mark sensor, and a reject gate, the NX102 runs the entire sequence — cam profiles, registration correction, IO mapping, and HMI refresh — inside a 2 ms scan with headroom.

Memory and communication at a glance

Parameter Value
Program capacity 5 MB
Data memory 33.5 MB (retained: 2 MB)
EtherCAT slaves Up to 64 axes
EtherNet/IP nodes Up to 64
Built-in ports 2 × EtherNet/IP, 1 × EtherCAT
Serial 1 × RS-232C / RS-422A / RS-485
SD card slot Yes (program backup and logging)
Cycle time (min) 1 ms
Number of tasks Up to 4 (primary periodic + 3 periodic)
Power supply 24 V DC, 7.5 W typical

When to choose the NX102 over the NX1P or NJ

The NX1021220 sits between the NX1P2 (1.5 MB, EtherCAT only) and the NJ501 (20 MB, full database connectivity). Choose the NX102 when:

  • You need both EtherCAT motion and EtherNet/IP for the plant network — the NX1P2 has only one EtherNet/IP port and shares it with programming traffic.
  • You have more than 16 axes or a tag database that exceeds 1.5 MB — the NX102's 5 MB of program space and 33.5 MB of data are the enabler.
  • You want OPC UA server embedded in the controller — available as a firmware option on the NX102, not on the NX1P.
  • You are retrofitting a legacy PLC and need to speak EtherNet/IP to existing Rockwell drives while adding EtherCAT servo axes — the NX102 does both natively.

Stock and sourcing

We carry position stock of the NX1021220 in Shenzhen with same-day dispatch. Reference pricing shown is indicative; final pricing depends on quantity and your delivery terms. Sysmac Studio software and NX I/O units are available as a consolidated BOM order — request a quote with your full part list for a line-item offer.
