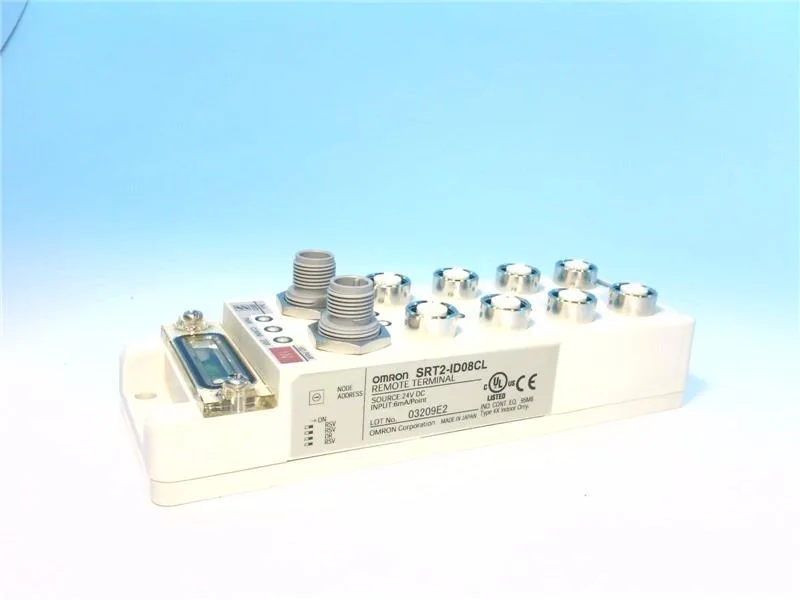

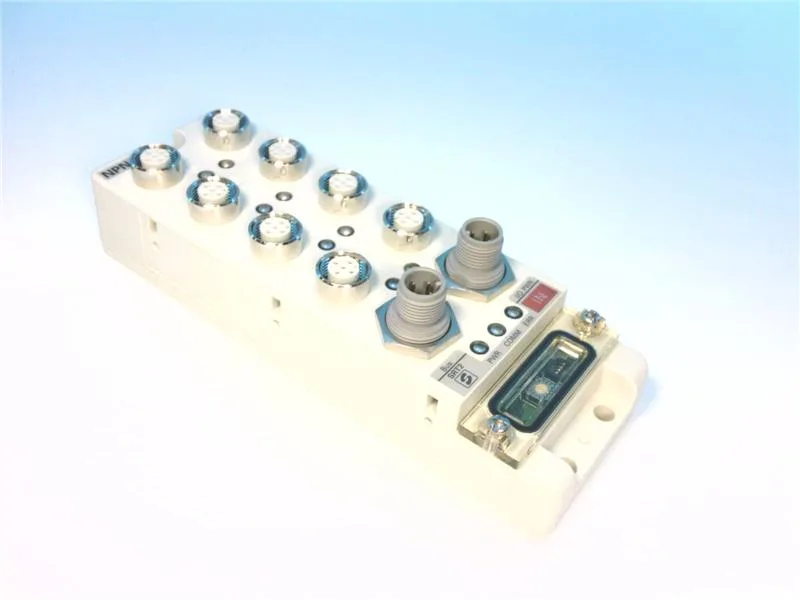

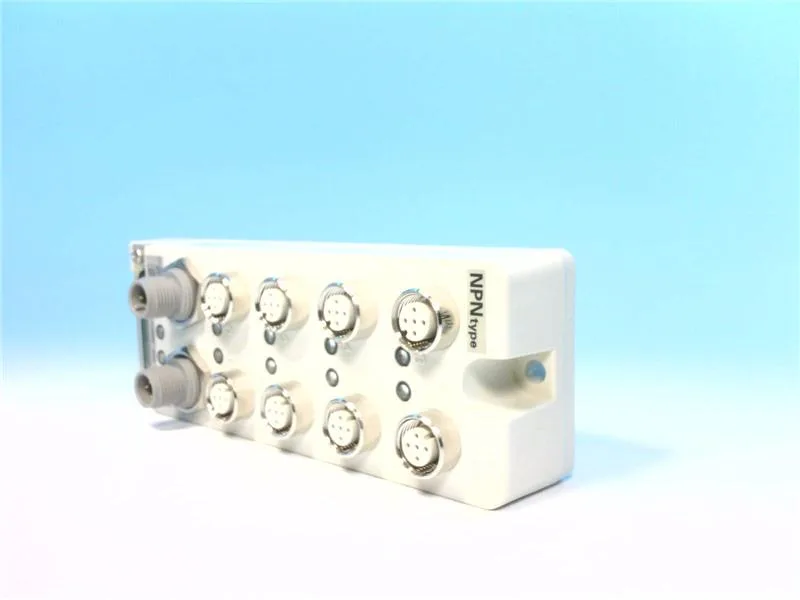

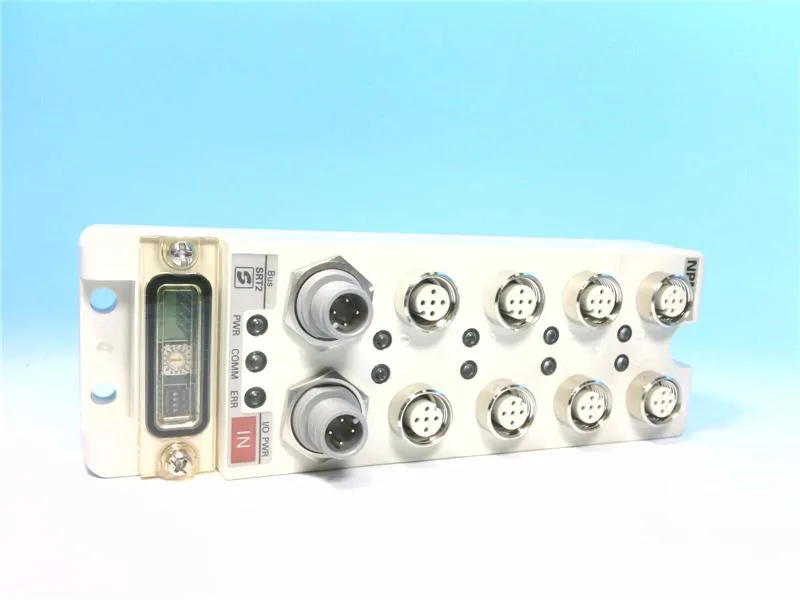

Omron SRT2-ID08CL

Omron SRT2-ID08CL Input Module, 8 DI, 24VDC, IP67, DIN Rail

MPN SRT2-ID08CL
Active

Omron SRT2 Series Input Module, SRT2-ID08CL, 8 Digital Inputs, 24VDC, IP67, DIN Rail, Screw Terminal, CE.

$822.33 – $982.32 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

SRT2-ID08CL specifications
ParameterValue
SeriesSRT2
Product typeInput Module
Supply voltage24 VDC
IP ratingIP67
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.529 lb (239.95 g)
PackageBulk

Product details

The Omron SRT2-ID08CL is a digital input module packing 8 discrete inputs onto a DIN-rail base. It runs on a 24VDC supply and terminates field wiring via screw terminals. The IP67 enclosure means it can sit right out in the washdown zone or on a packing line—no separate cabinet needed. Mount it, land the 24V and commons, and the eight channels are ready to read limit switches, prox sensors, or pushbuttons.

What the IP67 rating means for your panel

That IP67 rating isn't just a checkbox—it's what lets this module live on the machine frame instead of inside a climate-controlled cabinet. Dust-tight and protected against temporary immersion, it keeps running through hose-downs and gritty environments. The trade-off is the screw terminals are sealed under the cover, so any re-termination means pulling the cover screws. Fine for initial wiring; plan around it if you're field-swapping sensors often.

MPN
SRT2-ID08CL
