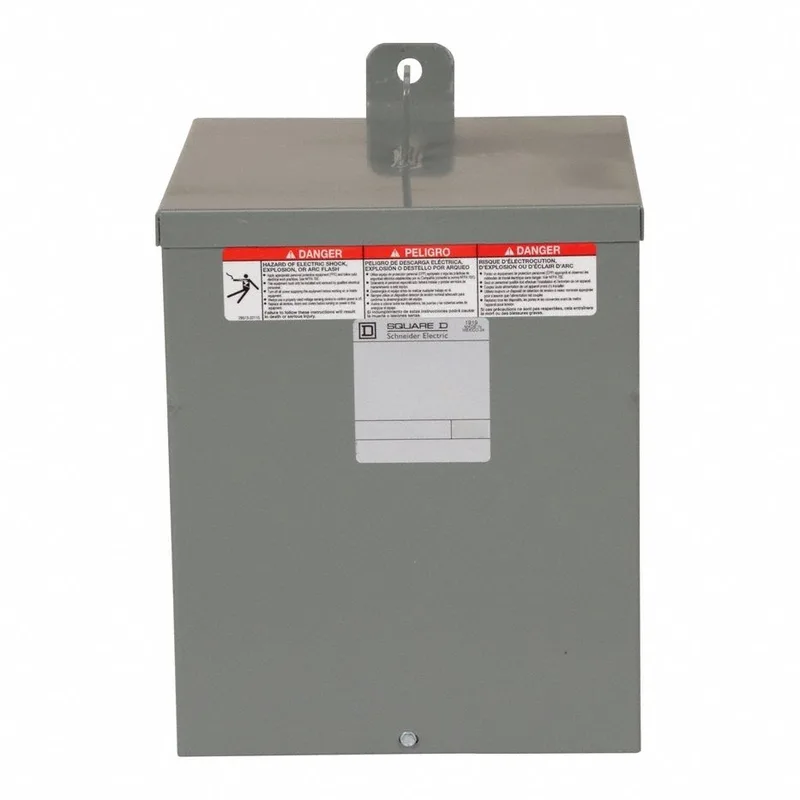

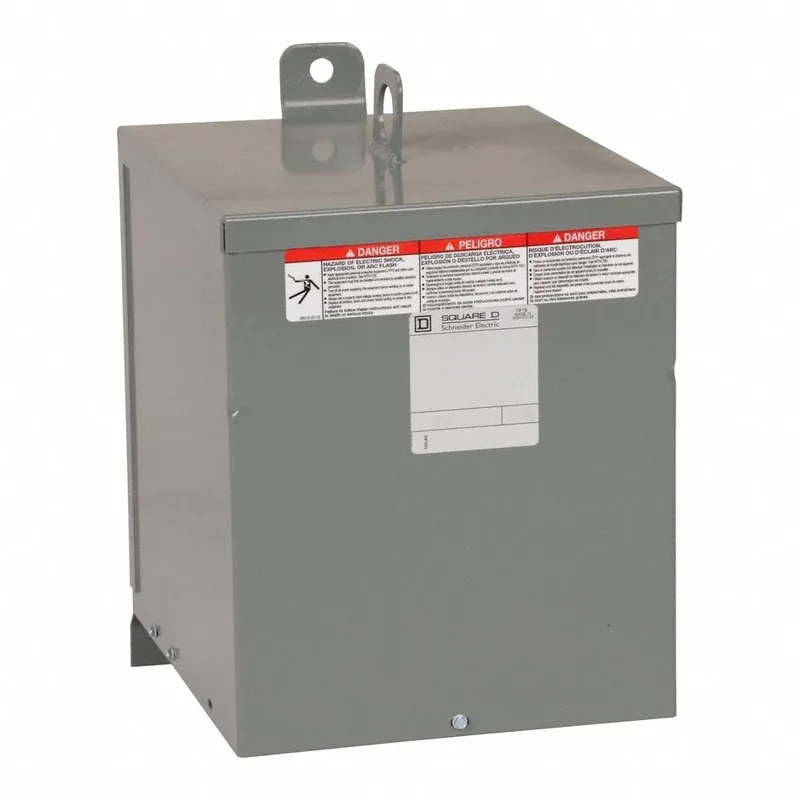

Schneider 10S4F Dry Type Transformer
MPN10S4F
Active
Transformer, Dry Type, 10KVA, 600VAC x 120/240VAC, NEMA 3R|Transformer, Dry Type, 10KVA, 600 Volt AC x 120/240 Volt AC, NEMA 3R
$4,349.35 – $4,770.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Enclosure type | NEMA 3R |
| Product or component type | Dry Sealed Transformer |
| Primary to secondary voltage | 600 V 120/240 V |
| Power rating | 10 kVA |
| Phases | 1 phase |
| Enclosure code | 13B |
| Enclosure material | Painted sheet steel |
| Enclosure mounting | Wall mounted |
| Depth | 11.75 in (298.45 mm) |
| Width | 9.75 in (247.65 mm) |
| Height | 14.75 in (374.65 mm) |
| Compliance (Compliance) | TAA |
| Category | US10PE216277 |
| Temperature rise | 115 °C |
| Full capacity taps | 2 5 % FCBN |
| Insulation temperature | 356 °F (180 °C) |
MPN
10S4F
