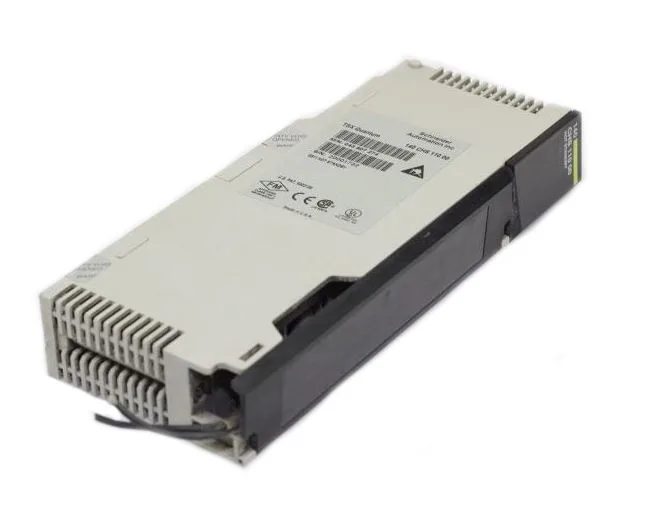

Schneider 140-CHS-110-00C Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range of product | Modicon Quantum automation platform |
| Electrical connection | 1 connector RJ45 for fiber optic receiver 1 connector RJ45 for fiber optic transmitter |
| Altitude max | <= 16404.2 ft (5000 m) |
| Humidity max | 95 |
| Output signal | Sy/Max (remote I/O only) Quantum 800 Series |
| Rfi immunity | 27...1000 MHz 9.1 V/m (10 V/m) IEC 60801-3 |
| Package_type | PCE |
| Module_format | Standard |
| Switching time | 13...48 ms |
| Resistance | 4 kV contact 8 kV air |
| Local signalling | 1 LED (amber) for module in standby 1 LED (green) for communication with I/O module 1 LED (green) for control process 1 LED (green) for ready module 1 LED (red) for communication error |
| Transmission rate | 10 Mbit/s |
| Parameter | Value |
|---|---|
| Switching current | 0.7 |
| Storage temperature | -40...185 °F (-40...85 °C) |
| Protective treatment | Conformal coating Humiseal 1A33 |
| Software designation | Concept >= V2.0 ProWORX 32 NxT V2.0 |
| Transmission support medium | Fiber optic 9.8 ft (3 m) |
| Main_product_or_component_type | Hot standby module |
| Operating temperature | 32 |
| Ordering and shipping details (Category) | 18150-QUANTUM CONTROLLERS,HSBY,COMM. |
The 140-CHS-110-00C is a Schneider Modicon Quantum hot standby module that manages Sy/Max remote I/O at 10 Mbit/s over a fiber optic link via two RJ45 connectors (one transmitter, one receiver). It is compatible with all 140CPU43412A/534 CPUs running IEC languages and legacy 140CPU units using LL984, and provides five status LEDs for module standby, communication, control process, ready, and error indication.
