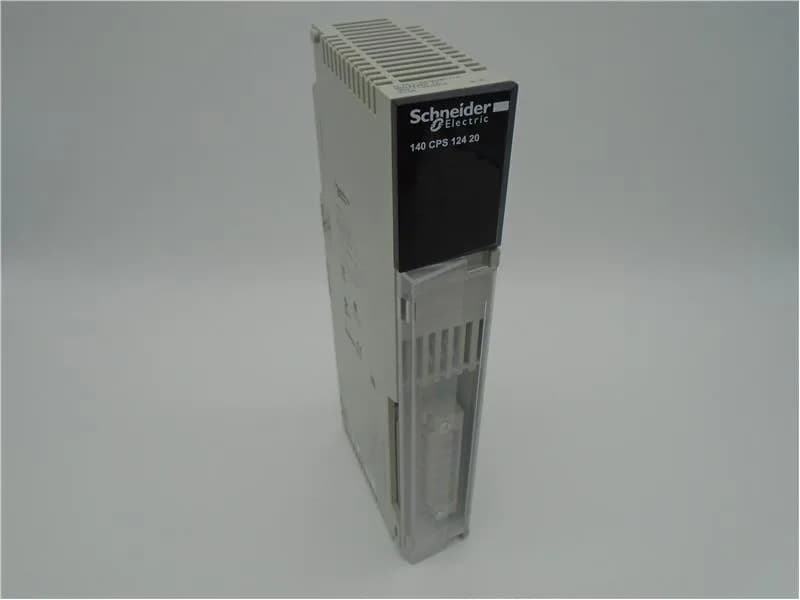

Schneider Electric 140CPS12420C
MPN140CPS12420C
Obsolete
Power Supply Module
$1,535.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Quantum automation platform |
| Power supply type | Redundant |
| Product or component type | Power supply module |
| Input voltage | 115 V 93...138 V) AC 47...63 Hz 230 V 170...276 V) AC |
| Output voltage | 5.1 V DC |
| Input current | 1100 mA 115 V 600 mA 230 V |
| Inrush current | 19 A 230 V 38 A 115 V |
| Power supply output current | 11 A 140 °F (60 °C) standalone 10 A 140 °F (60 °C) redundant |
| Power dissipation | 6 + (1.5 x Iout) where Iout is in A |
| Rated power in | 130 VA |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
All specifications
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 142 UL 508 |
| Marking | CE |
| Category | US1PC2118155 |
| Alarm output | 1 NC 6 A 220 V power supply fault |
| Module format | Standard |
| Local signalling | 1 LED (green) for power (PWR OK) |
| Harmonic distortion | <= 10 % of fundamental rms value |
| Protective treatment | Conformal coating Humiseal 1A33 |
| Associated fuse rating | 2 A, slow-blow |
| Output overload protection | Internal |
| Output overvoltage protection | Internal |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
MPN
140CPS12420C
