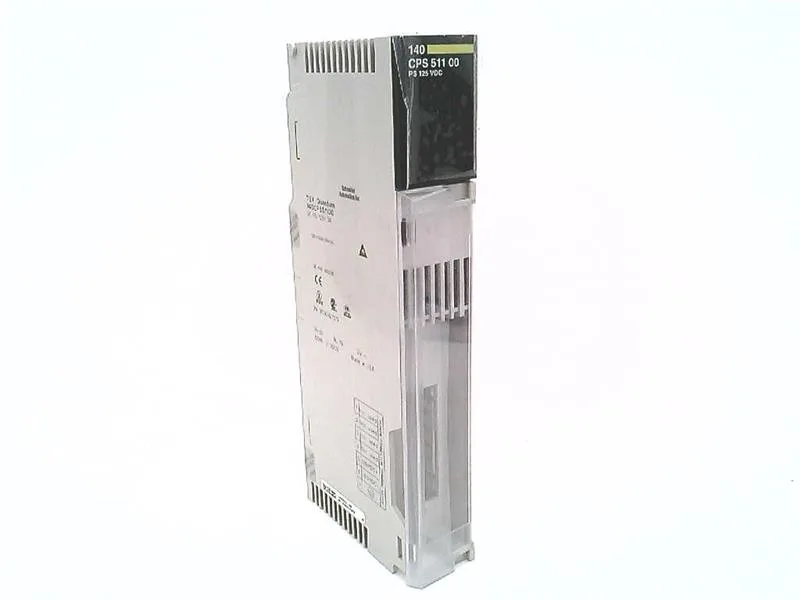

Schneider Electric 140CPS51100
MPN140CPS51100
Obsolete
Logic Power Supply Module, Modicon, Quantum, 125VDC, 100 - 150VDC, Standalone, 0.3 - 3A|Logic Power Supply Module, Modicon, Quantum, 125 Volt DC, 100 - 150 Volt DC, Standalone, 0.3 - 3 Amp
$522.49 – $1,163.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Quantum automation platform |
| Power supply type | Standalone |
| Product or component type | Power supply module |
| Input voltage | 125 V 100...150 V) DC |
| Output voltage | 5.1 V DC |
| Input current | 400 mA 125 V |
| Inrush current | 10 A |
| Power supply output current | 0.3...3 A standalone |
| Power dissipation | 2 + (3 x Iout) where Iout is in A |
| Maximum input power interruption | 1 ms |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
All specifications
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 142 UL 508 |
| Marking | CE |
| Category | US1PC2118155 |
| Module format | Standard |
| Local signalling | 1 LED (green) for power (PWR OK) |
| Associated fuse rating | 0.75 A, slow-blow |
| Output overload protection | Internal |
| Output overvoltage protection | Internal |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
MPN
140CPS51100
