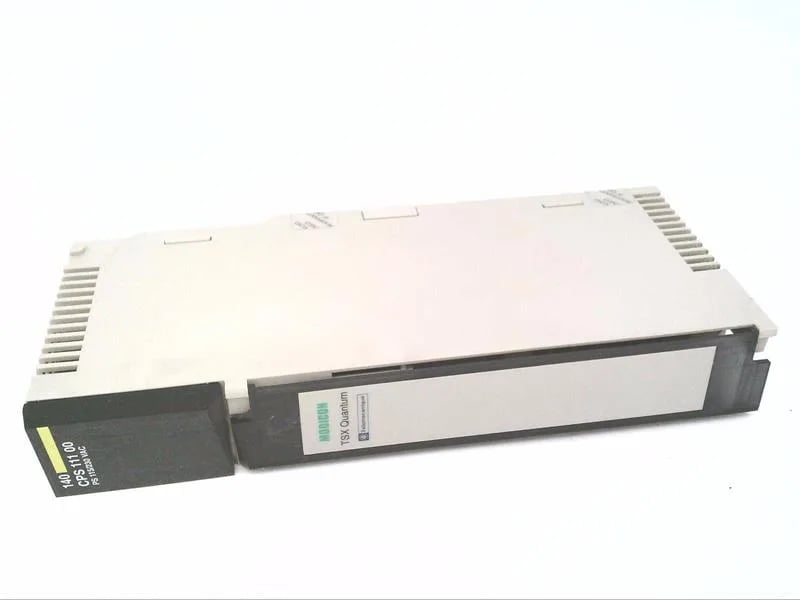

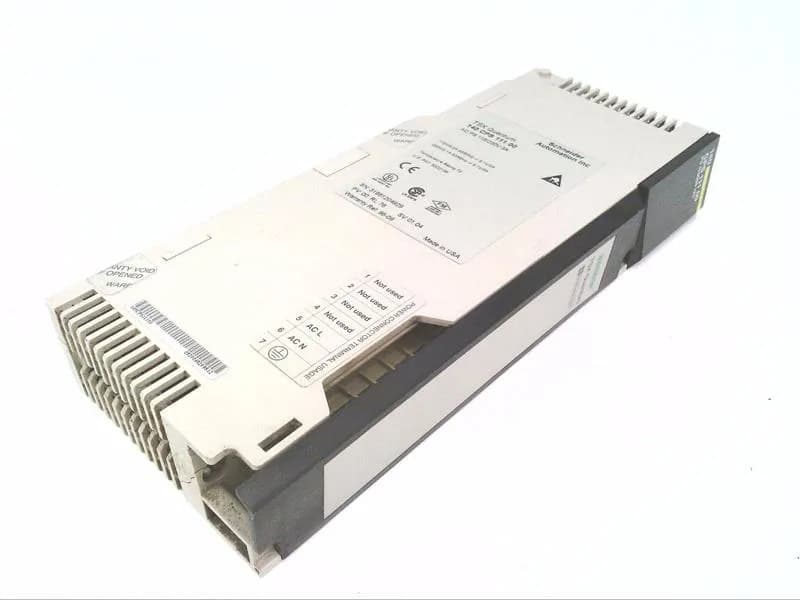

Schneider Electric Modicon Quantum automation platform 140CPS11100 power supply module, 230 V AC input, 3 A / 5.1 V DC output, standalone, chassis mount, CE, UL 508, CSA C22.2 No 142, cUL, FM Class 1 Division 2.
| Parameter | Value |
|---|---|
| Range of product | Modicon Quantum automation platform |
| Power supply type | Standalone |
| Product or component type | Power supply module |
| Input voltage | 120...230 V 100...276 V) AC 47...63 Hz |
| Output voltage | 5.1 V DC |
| Input current | 200 mA 230 V 400 mA 115 V |
| Inrush current | 10 A 230 V 20 A 115 V |
| Power supply output current | 3 A standalone |
| Power dissipation | 2 + (3 x Iout) where Iout is in A |
| Rated power in | 50 VA |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Parameter | Value |
|---|---|
| Standards | UL 508 CSA C22.2 No 142 |
| Marking | CE |
| Category | US1PC2118155 |
| Module format | Standard |
| Local signalling | 1 LED (green) for power (PWR OK) |
| Harmonic distortion | <= 10 % of fundamental rms value |
| Associated fuse rating | 1.5 A, slow-blow |
| Output overload protection | Internal |
| Output overvoltage protection | Internal |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
The 140CPS11100 is a Modicon Quantum power supply module that converts a 230 V AC line input to a 5.1 V DC / 3 A bus for the backplane, with internal output overload protection and a green PWR OK LED. It carries CE, UL 508, CSA C22.2 No 142, cUL, and FM Class 1 Division 2 certifications, suiting it for general industrial and hazardous-location panels.
For a line-down or last-time-buy decision, an RFQ confirms available quantity and lead time for the exact build code.
