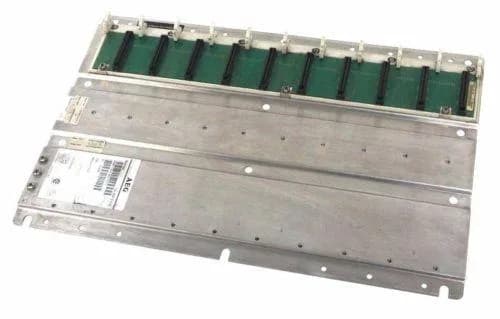

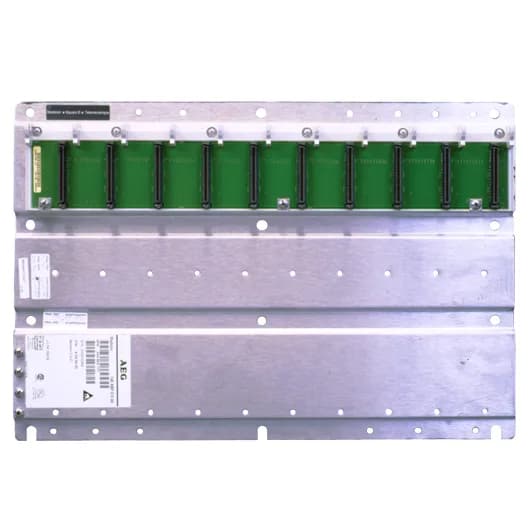

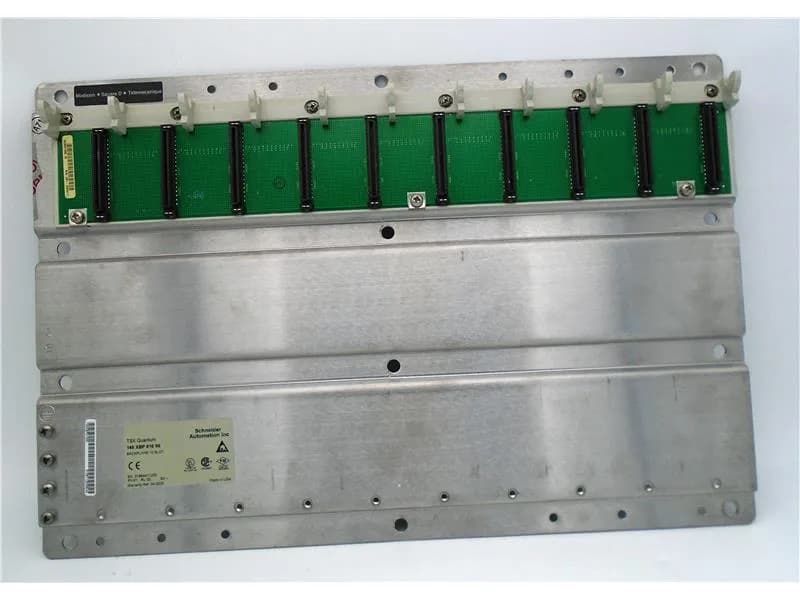

The 140XBP01000: 10-slot backplane for the Modicon Quantum automation platform, used to mount local, distributed, or remote I/O modules in a control system. The 10 free slots define the I/O density per rack—enough for a medium-sized control node without needing an expansion chassis.
Mechanical Integration
Secures to the panel by screw fixing onto a mounting plate. This is the standard Quantum backplane mounting method; ensure the plate is flat and drilled for M6 screws (not included) at the four corner slots. Single unit per package.
