CableFast system cable

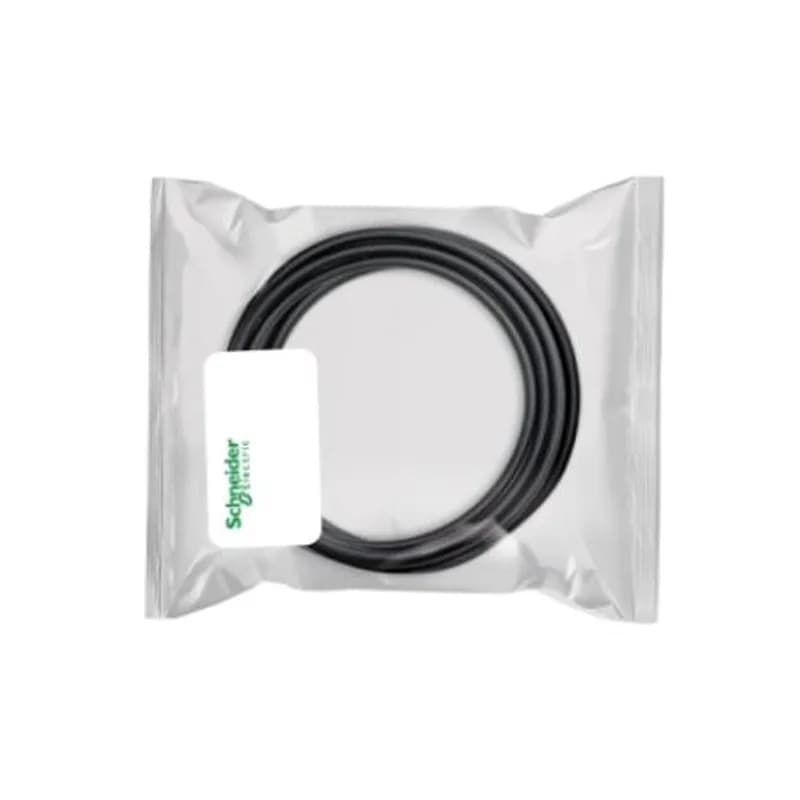

The 140XTS01209 is a CableFast system cable designed for Schneider Modicon Quantum modules. It is a black, terminated cable with a length of 2.7 m (8.9 ft), rated for high-power applications. It provides a connection between a Quantum module and a CableFast terminal block via 1 Quantum I/O connector and 1 SUB-D 50-pin connector.
Field connection detail

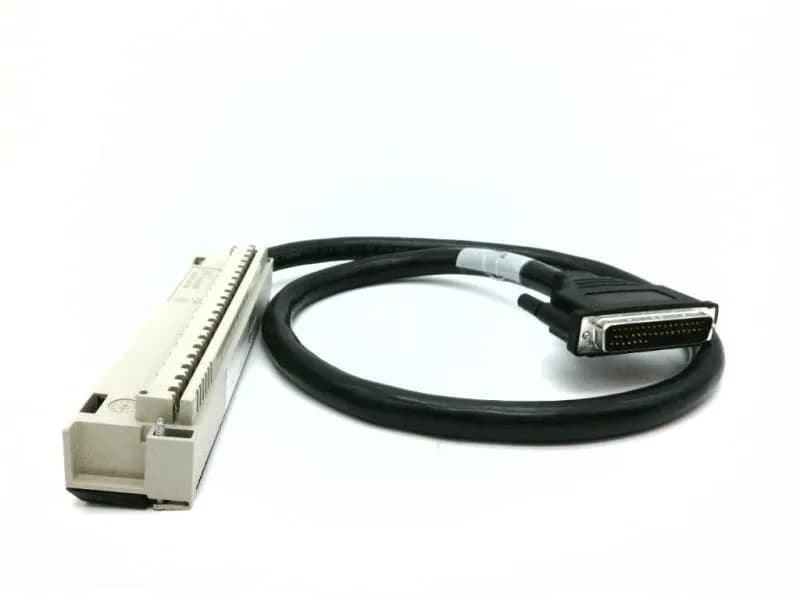

The cable terminates at both ends: one Quantum I/O connector and one SUB-D 50-pin connector. It is a pre-terminated, high-power cable; verify connector keying and pinout against the target Quantum module and CableFast assembly before installation. The 2.7 m length suits cabinet-to-panel routing without excessive service loops.
