Schneider Electric 15913
MPN15913
Obsolete

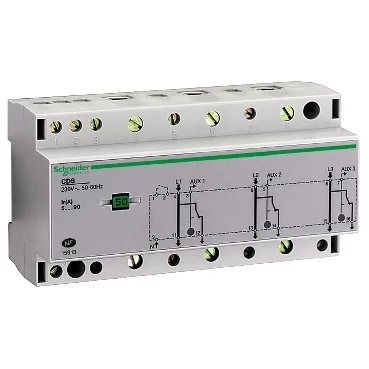

CDS - three phase load-shedding contactor - 1 channel per phase
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product name | Multi9 CDS |
| Product range (series) | Multi9 |
| Product/component type | Load-shedding contactor |
| Parameter | Value |
|---|---|
| Poles configuration | 3P |
| Rated operational voltage (Ue) | 230 V AC +/- 10 % at 50/60 Hz |
| Parameter | Value |
|---|---|
| Mounting support | Wall mounted Panel mounting 35 mm symmetrical DIN rail |
| Terminal connection type | Non-priority circuit: screw terminal2.5...10 mm² Priority circuit: screw terminal4...50 mm² |
| Local signalling/indication | Load-shedding indication: 3 LEDs (yellow) |
| Width | 145 mm |
| Height | 77 mm |
| Depth | 67 mm |
| Number of 9 mm pitches | 16 |
| Parameter | Value |
|---|---|
| Operating ambient temperature | -5...55 °C |
| IP degree of protection | IP40 IP20 |
| Parameter | Value |
|---|---|
| Standards | EN 50081-1 NF C 61-750 EN 50081-2 |
MPN
15913
