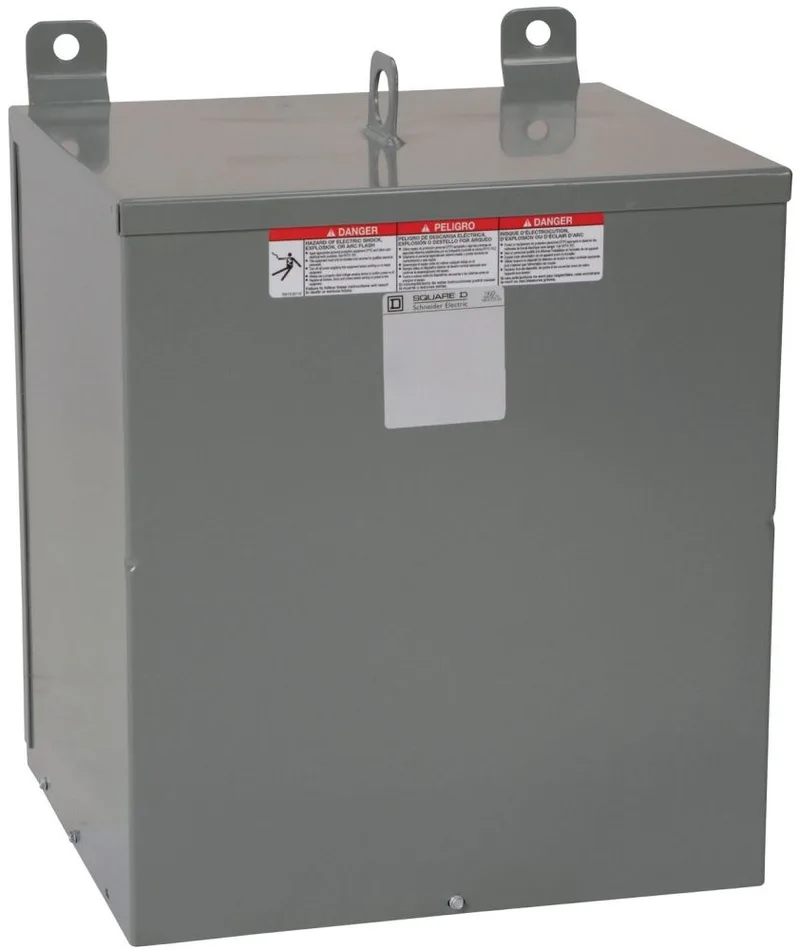

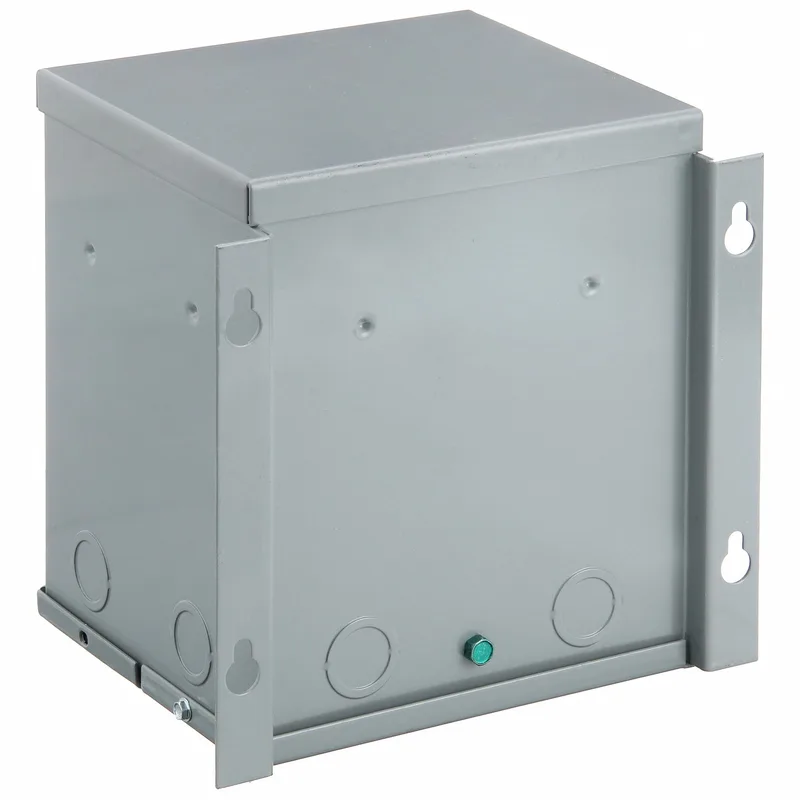

Schneider Electric 15S1F
MPN15S1F
Transformer, Dry Type, 15KVA, 240/480 x 120/240VAC, NEMA 3R|Transformer, Dry Type, 15 KVA, 240/480 x 120/240 Volt AC, NEMA 3R
$947.73Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Phase | 1 phase |
| Parameter | Value |
|---|---|
| Depth | 13.5 in (342.9 mm) |
| Width | 15 in (381 mm) |
| Height | 20 in (508 mm) |
| Power rating | 15 kVA |
| Enclosure code | 15B |
| Enclosure type | NEMA 3R |
| Temperature rise | 115 °C |
| Enclosure material | Painted sheet steel |
| Enclosure mounting | Wall mounted |
| Full capacity taps | 0 |
| Compliance (Compliance) | TAA |
| Insulation temperature | 356 °F (180 °C) |
| Product or component type | Dry Sealed Transformer |
| Primary to secondary voltage | 240 x 480 V 120/240 V |
MPN
15S1F
