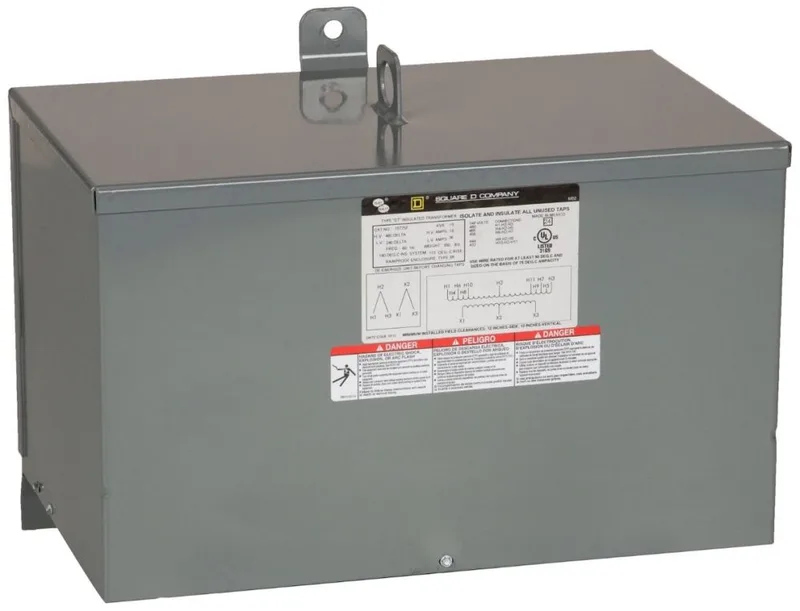

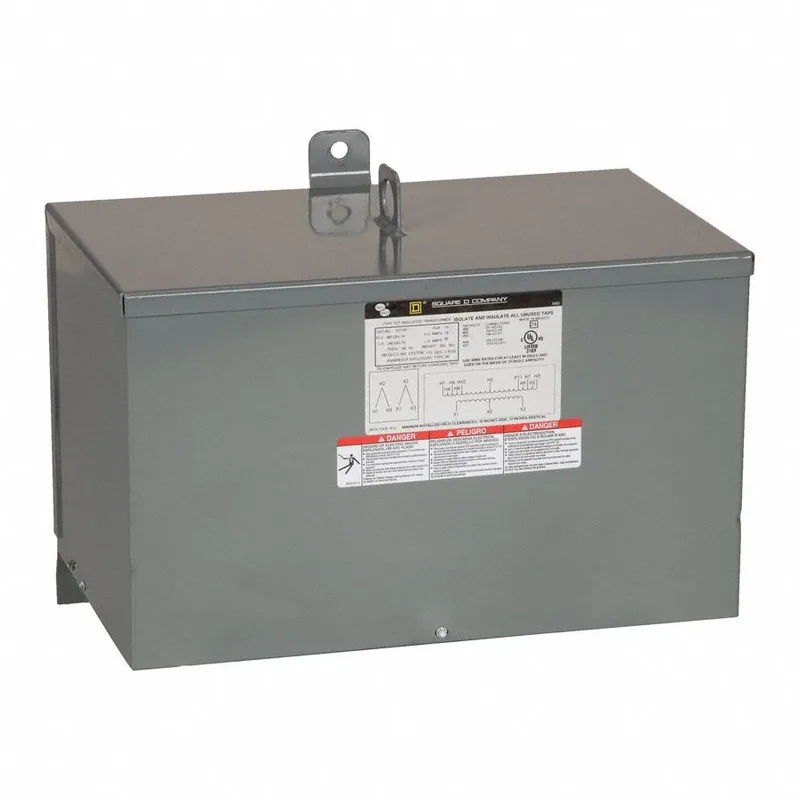

Schneider 15T75F Dry Type Transformer
MPN15T75F
Active
The Schneider 15T75F is a 15 KVA single-phase dry type transformer with a 480 V primary and 120/240 V secondary, featuring copper windings and a NEMA 3R enclosure. It is epoxy encapsulated for wall mounting in indoor or outdoor settings and meets UL 506 and CSA C22.2 standards.
$5,938.26 – $8,135.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Enclosure type | NEMA 3R |
| Product or component type | Dry Sealed Transformer |
| Primary to secondary voltage | 480 V delta 240 V delta |
| Power rating | 15 kVA |
| Phases | 3 phase |
| Enclosure code | 14C |
| Enclosure material | Painted sheet steel |
| Enclosure mounting | Wall mounted |
| Depth | 12.25 in (311.15 mm) |
| Width | 19.1 in (485.1 mm) |
| Height | 14.75 in (374.65 mm) |
| Compliance (Compliance) | TAA |
| Category | US10PE216277 |
| Temperature rise | 115 °C |
| Full capacity taps | 4 2.5 % FCBN |
| Insulation temperature | 356 °F (180 °C) |
MPN
15T75F
