Schneider Electric 23401
MPN23401
Obsolete

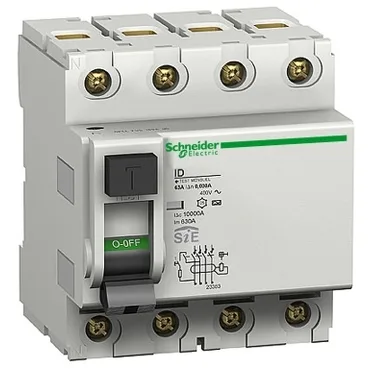

residual current circuit breaker ID - 4 poles - 63 A - 300 mA - class A SiE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Residual current circuit breaker (RCCB) |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz conforming to IEC 61008 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-3 |
| Current | 63 A |
| Residual current tripping technology | Electromechanical |
| Rated conditional short-circuit current | Inc 10 kA 63 A |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Connection pitch | 18 mm between phases |
| Wire stripping length | 15 mm |
| Connections - terminals | Tunnel type terminals1...25 mm² flexible Tunnel type terminals1...35 mm² rigid |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 75 mm |
| Width | 72 mm |
| Color | Grey |
| Height | 81 mm |
| Mechanical durability | 20000 cycles |
| Standards | IEC 61008 IEC 60947-3 IEC 60947-1 |
| 9 mm pitches | 8 |
| Tropicalisation | 2 conforming to IEC 61008 |
| Neutral position | Left |
| Device short name | ID RCCB |
| Tightening torque | 3.5 N.m |
| Provision for padlocking | Padlockable |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 300 mA |
| Earth-leakage protection class | Type A-SIE |
| Rated breaking and making capacity | Im = 630 A |
| Ambient air temperature for storage | -40...60 °C |
| Earth-leakage protection time delay | Selective |
| Ambient air temperature for operation | -25...40 °C |
MPN
23401
