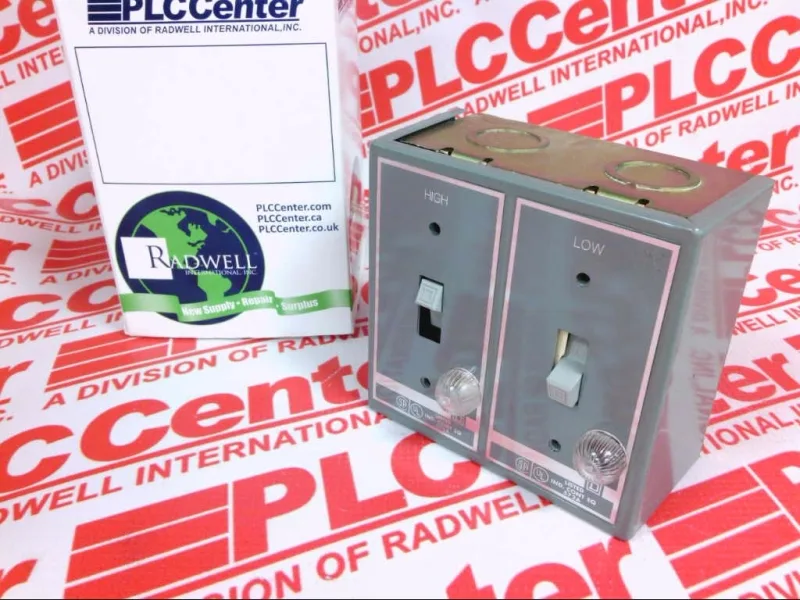

Schneider Electric 2512KG11A
MPN2512KG11A
Obsolete
MANUAL STARTER 600VAC|SQD 2512KG11A MANUAL STARTER 600VAC
$471.79Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | K |
| Starter type | 2 speed |
| Control unit type | Toggle |
| Maximum voltage rating | 600 V AC 230 V DC |
| Current rating | 30 A |
| Horsepower rating | 2 hp 115 V AC 2 hp 230 V AC 3 hp 460 V AC 3 hp 575 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC |
| Poles | 2P |
| Phases | 1 phase |
| NEMA enclosure rating | NEMA 1 painted sheet steel standard size |
| Wire gauge | AWG 14...AWG 10 copper |
| Cable entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Electrical connection | Screw clamp terminals |
All specifications
| Parameter | Value |
|---|---|
| Depth | 2.75 in (69.85 mm) |
| Width | 4.5 in (114.3 mm) |
| Height | 4.25 in (107.95 mm) |
| Certifications | UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05 |
| Product | Duplex Unit Manual Switch |
| Category | 21102-2510,2511,2512 K |
| Pilot light | Red indicator, 115 V |
MPN
2512KG11A
