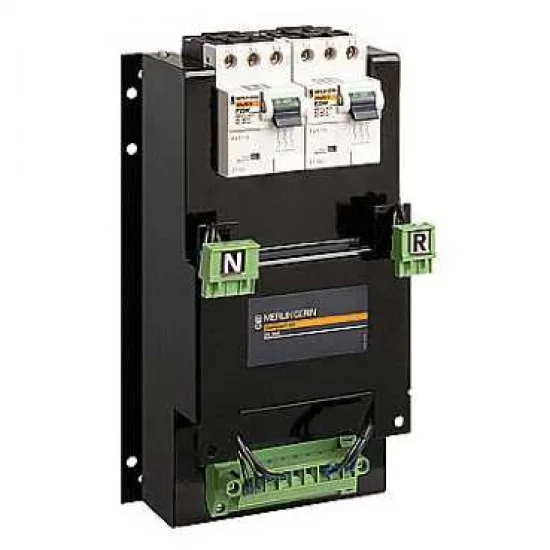

Schneider Electric 29364
MPN29364
Active
ACP Control Plate, Transferpact, 380 - 415VAC 50/60Hz|ACP Control Plate, Transferpact, 380 - 415 Volt AC 50/60Hz
$346.71Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Contacts customer voluntary order to transfer to source R |
| Output signal | Contacts customer: indication of operation in automatic or stop mode |
| Range of product | Compact NS630b...1600 NSX400...630 Compact NS100...630 MasterPact NW MasterPact NT NSX100...250 |
| Product or component type | Control plate |
| Supply voltage | 380...415 V AC at 50/60 Hz 440 V AC at 60 Hz |
| IK degree of protection | Front: IK07 conforming to EN 50102 |
| IP degree of protection | IP20 connectors: conforming to EN 60529 IP40 front: conforming to EN 60529 IP30 side: conforming to EN 60529 |
| Range | ComPact |
| Selection modes | Circuit breaker on N Circuit breaker on R |
| Device short name | ACP |
| Interlocked device | MasterPact NW NSX400...630 NSX100...250 Compact NS630b...1600 Compact NS100...630 MasterPact NT |
| Accessory (separate part category) | Interlocking accessory |
MPN
29364
