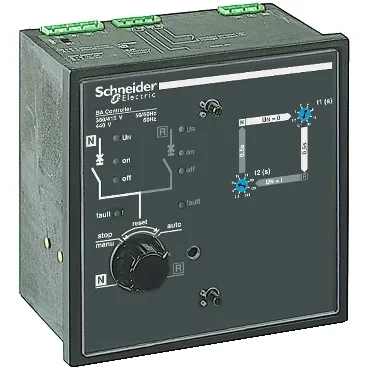

Schneider Electric 29377
MPN29377
Active
BA controller, for TransferPacT automatic control unit, 380...415V, 50/60Hz
$678.68 – $1,683.50Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Contacts customer voluntary order to transfer to source R |
| Output signal | Contacts customer: indication of operation in automatic or stop mode |
| Range of product | Compact NS100...630 Compact NS630b...1600 MasterPact NW MasterPact NT |
| Product or component type | Control unit |
| Supply voltage | 380...415 V AC at 50/60 Hz 440 V AC at 60 Hz |
| [Ie] rated operational current | AC-12: 4 A AC 440 V AC-12: 5 A AC 380/415 V DC-13: 2 A 24 V |
| [Ith] conventional free air thermal current | 8 A |
| IK degree of protection | Front: IK07 conforming to EN 50102 |
| IP degree of protection | IP20 connectors: conforming to EN 60529 IP40 front: conforming to EN 60529 IP30 side: conforming to EN 60529 |
| Standards | IEC 947-5-1 |
| Test function | By opening the P25M circuit breaker supplying the controller |
| Operating mode | Forced operation on replacement source Forced operation on normal source Stop (both normal and replacement source off) Automatic operation |
| Selection modes | Circuit breaker on N Circuit breaker on R |
| Local signalling | On Fault trip Off |
| Device short name | BA |
| Interlocked device | MasterPact NT Compact NS630b...1600 MasterPact NW Compact NS100...630 |
| Complementary function | Additional contact: transfer to replacement source only if contact is closed Voluntary transfer to replacement source (e.g. energy management commands) |
MPN
29377
