Schneider Electric 2S67F
MPN2S67F
Active

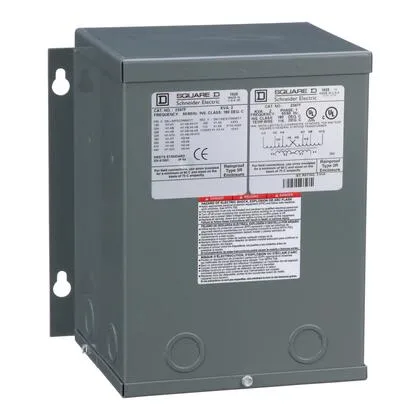

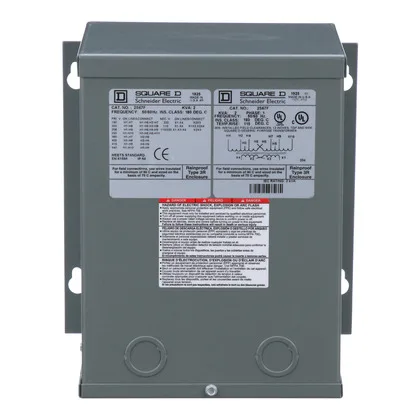

Transformer, Dry Type, Sealed, Export, 2KVA, Multi Tap, 1PH|Transformer, Dry Type, Sealed, Export, 2 KVA, 190/200/208/220/380/400/416/440 x 110/220 Volt AC, 1-Phase
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Phase | 1 phase |
| Parameter | Value |
|---|---|
| Depth | 6.56 in (166.62 mm) |
| Width | 8.68 in (220.47 mm) |
| Height | 9.56 in (242.82 mm) |
| Power rating | 2 kVA |
| Enclosure code | 9A |
| Enclosure type | NEMA 3R |
| Temperature rise | 115 °C |
| Enclosure material | Painted sheet steel |
| Enclosure mounting | Wall mounted |
| Full capacity taps | 0 |
| Compliance (Compliance) | TAA |
| Insulation temperature | 356 °F (180 °C) |
| Primary to secondary voltage | 190/200/208/220 x 380/400/416/440 V 110/220 V |
MPN
2S67F
