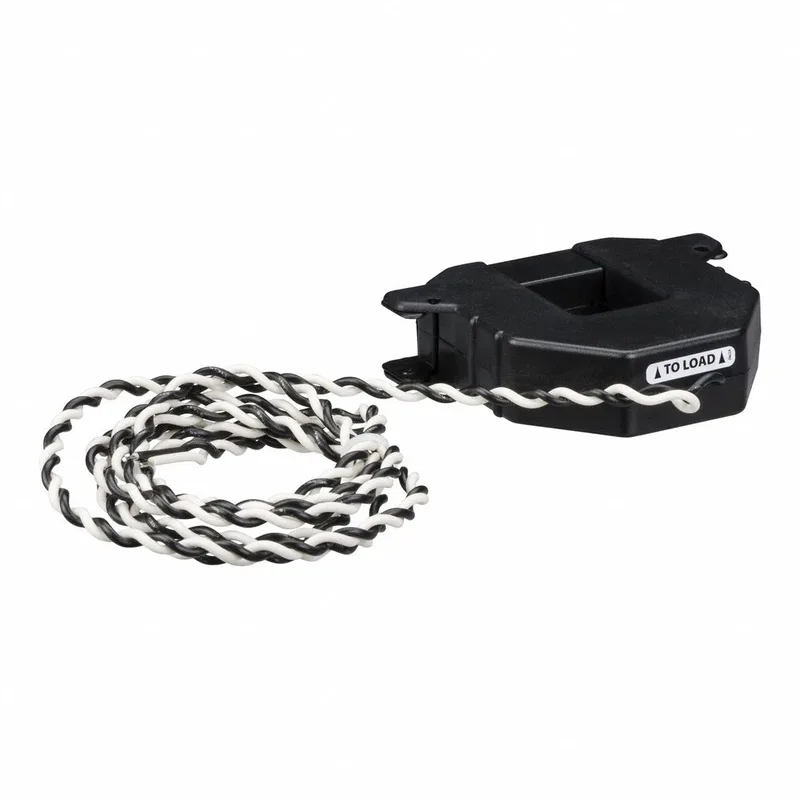

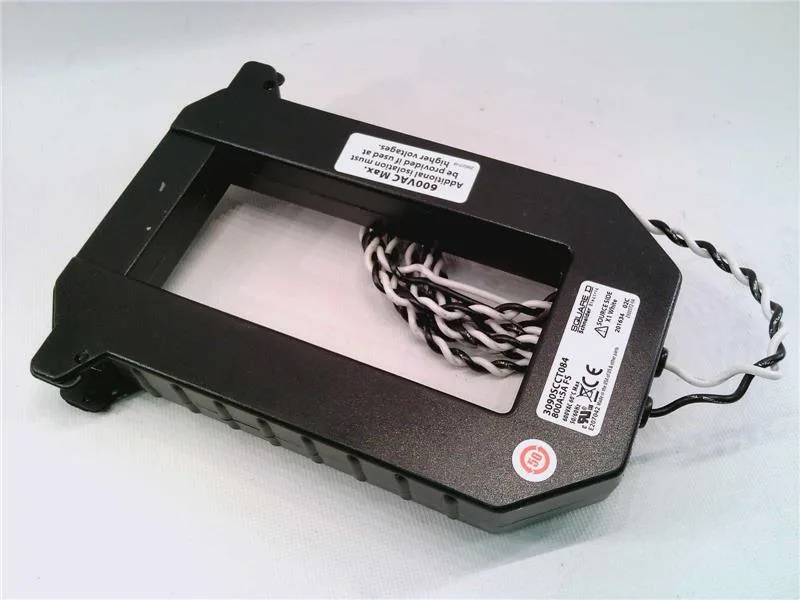

Schneider Electric 3090SCCT084
MPN3090SCCT084
Current Transformer, Split Core, Powerlogic, 800A, Size 4, 600VAC|Current Transformer, Split Core, Powerlogic, 800 Amp, Size 4, 600 Volt AC
$293.12 – $354.94Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Frequency | 50/60 Hz |
| Standards | EU RoHS; IEC 61010-1; REACH; UL 1015; UL 61010-1 |
| Sub-brand | Powerlogic Meter with Hosted Service |
| Connection | Wire Lead |
| Window shape | Rectangular |
| Window width | 2.45 in |
| Overall depth | 1.14 in |
| Overall width | 5.95 in |
| Window height | 5.5 in |
| Overall height | 8.15 in |
| Transformer type | Split Core |
| Wire lead length | 5.9 ft |
| Primary current - maximum | 800 A |
| Secondary current - maximum | 5 A |
| Operating temperature - maximum | 140 °F |
| Operating temperature - minimum | 5 °F |
MPN
3090SCCT084
