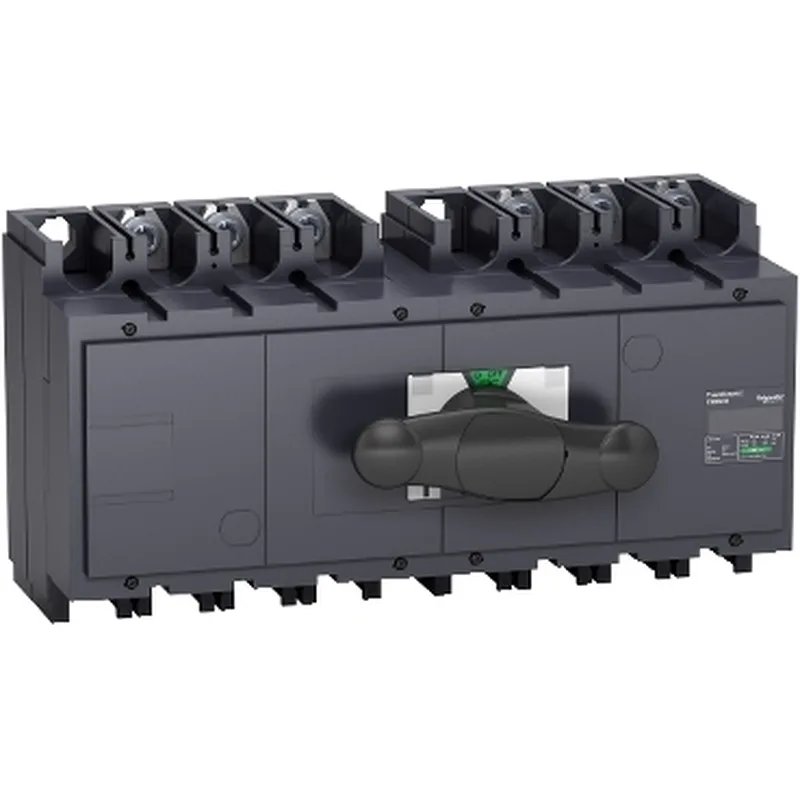

Manual transfer switch, TransferPacT FXM500, switch disconnector, 500A, 3P
$1,338.85 – $1,776.96Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Direct front rotary handle |
| Network type | AC DC |
| Range of product | INS320...630 |
| Product or component type | Manual transfer switch |
| Voltage | 750 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 125 V DC conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 11.5 kA during 3 s conforming to IEC 60947-3 20 kA during 1 s conforming to IEC 60947-3 4 kA during 30 s conforming to IEC 60947-3 4.9 kA during 20 s conforming to IEC 60947-3 |
| [Ie] rated operational current | AC-22A: 500 A AC 50/60 Hz 220/240 V AC-22A: 500 A AC 50/60 Hz 380/415 V AC-22A: 500 A AC 50/60 Hz 440/480 V AC-22A: 500 A AC 50/60 Hz 500/525 V AC-22A: 500 A AC 50/60 Hz 660/690 V AC-23A: 500 A AC 50/60 Hz 220/240 V AC-23A: 500 A AC 50/60 Hz 380/415 V AC-23A: 500 A AC 50/60 Hz 440/480 V AC-23A: 500 A AC 50/60 Hz 500/525 V AC-23A: 500 A AC 50/60 Hz 660/690 V DC-22A: 500 A DC 125 V 2 poles in series DC-23A: 500 A DC 125 V 2 poles in series |
| [Icm] rated short-circuit making capacity | 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz 50 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ith] conventional free air thermal current | 500 A at 60 °C |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P |
| Rated duty | Uninterrupted |
| Intermittent duty class | Class 120 - 60 % |
| IP degree of protection | IP40 conforming to IEC 60947-3 |
| Mounting mode | Fixed |
| Mounting support | Rail Plate |
| Connection pitch | 45 mm |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 |
| Electrical shock protection class | Class II |
| Depth | 155 mm |
| Width | 395 mm |
| Height | 205 mm |
| Electrical durability | AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-23A: 1000 cycles 125 V DC 2 poles in series |
| Mechanical durability | 10000 cycles |
| Standards | IEC 60947-1 IEC 60947-3 |
| Range | TransferPacT ComPact |
| Operating mode | Manual |
| Device short name | INS500 |
| Device application | Change source of supply |
| Transfer switch class | PC |
| Mechanical interlocking | With mechanical interlocking |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Number of contact position | 3 |
| Locking options description | Padlocking in OFF position |
| Ambient air temperature for operation | -25...70 °C |
