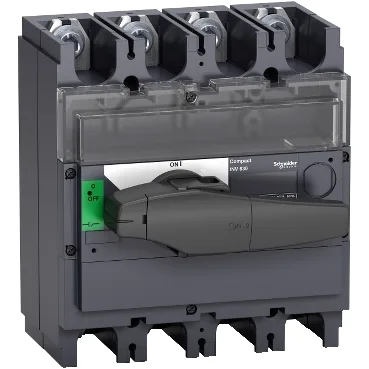

visible break switch-disconnector Compact INV320 - 320 A - 4 poles

$588.92Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

31169 key specifications
ParameterValue
Control typeRotary handle
Network typeAC DC
Product or component typeSwitch disconnector
Voltage750 V AC 50/60 Hz
[Ue] rated operational voltage690 V AC 50/60 Hz 250 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current11.5 kA during 3 s conforming to IEC 60947-3 20 kA during 1 s conforming to IEC 60947-3 4 kA during 30 s conforming to IEC 60947-3 4.9 kA during 20 s conforming to IEC 60947-3
[Ie] rated operational currentAC-21A: 320 A AC 50/60 Hz 220/240 V AC-21A: 320 A AC 50/60 Hz 380/415 V AC-21A: 320 A AC 50/60 Hz 440/480 V AC-21A: 320 A AC 50/60 Hz 480 V NEMA AC-21A: 320 A AC 50/60 Hz 500/525 V AC-21A: 320 A AC 50/60 Hz 660/690 V AC-22A: 320 A AC 50/60 Hz 220/240 V AC-22A: 320 A AC 50/60 Hz 380/415 V AC-22A: 320 A AC 50/60 Hz 440/480 V AC-22A: 320 A AC 50/60 Hz 480 V NEMA AC-22A: 320 A AC 50/60 Hz 500/525 V AC-22A: 320 A AC 50/60 Hz 660/690 V AC-23A: 320 A AC 50/60 Hz 220/240 V AC-23A: 320 A AC 50/60 Hz 380/415 V AC-23A: 320 A AC 50/60 Hz 440/480 V AC-23A: 320 A AC 50/60 Hz 480 V NEMA AC-23A: 320 A AC 50/60 Hz 500/525 V AC-23A: 320 A AC 50/60 Hz 660/690 V DC-21A: 320 A DC 125 V 2 poles in series DC-22A: 320 A DC 125 V 2 poles in series DC-23A: 320 A DC 125 V 2 poles in series DC-21A: 320 A DC 250 V 4 poles in series DC-22A: 320 A DC 250 V 4 poles in series DC-23A: 320 A DC 250 V 4 poles in series
[Icm] rated short-circuit making capacity330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz 50 kA switch-disconnector alone 690 V AC at 50/60 Hz
[Ith] conventional free air thermal current320 A at 60 °C
Maximum powerAC-23: 160 kW at 380/415 V AC 50/60 Hz AC-23: 185 kW at 440 V AC 50/60 Hz AC-23: 185 kW at 480 V AC 50/60 Hz (NEMA) AC-23: 220 kW at 500/525 V AC 50/60 Hz AC-23: 250 kW at 660/690 V AC 50/60 Hz AC-23: 90 kW at 220/240 V AC 50/60 Hz AC-23: 90 kW at 230 V AC 50/60 Hz (NEMA)
Network frequency50/60 Hz

All specifications

31169 additional specifications
ParameterValue
Poles description4P
Rated dutyUninterrupted
IK degree of protectionIK07 conforming to EN 50102
IP degree of protectionIP40 conforming to IEC 60529
Mounting modeFixed
Mounting supportRail Plate
Connection pitch45 mm
Upside connectionFront
Downside connectionFront
Pollution degree3
Depth130 mm
Width185 mm
Height205 mm
Handle colourBlack
Electrical durabilityAC-21A: 1000 cycles 440 V AC 50/60 Hz AC-21A: 1000 cycles 500 V AC 50/60 Hz AC-21A: 1000 cycles 690 V AC 50/60 Hz AC-22A: 1000 cycles 440 V AC 50/60 Hz AC-22A: 1000 cycles 500 V AC 50/60 Hz AC-22A: 1000 cycles 690 V AC 50/60 Hz AC-23A: 1000 cycles 440 V AC 50/60 Hz AC-23A: 1000 cycles 500 V AC 50/60 Hz AC-23A: 1000 cycles 690 V AC 50/60 Hz DC-21A: 1000 cycles 250 V DC DC-22A: 1000 cycles 250 V DC DC-23A: 1000 cycles 250 V DC
Mechanical durability10000 cycles
StandardsIEC 60947-1 IEC 60947-3
RangeComPact
Visible breakYes
Suitability for isolationYes
Contact position indicatorYes
Ambient air temperature for storage-50...85 °C
Ambient air temperature for operation-25...70 °C
