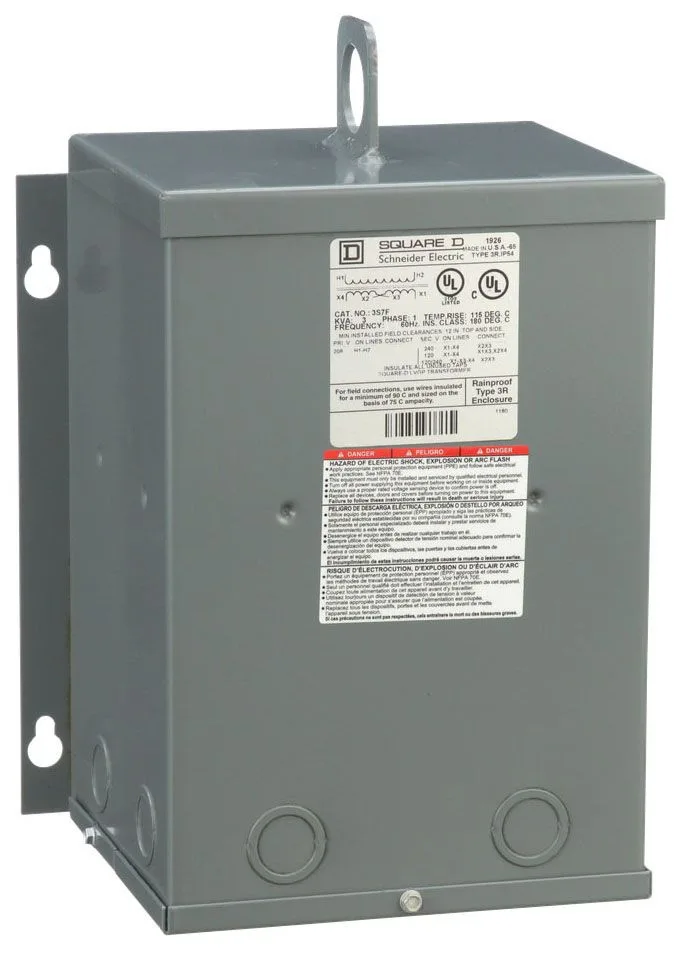

Schneider 3S7F Dry Type Transformer
MPN3S7F
Active
Transformer, Dry Type, 3KVA, 208 - 120/240VAC, NEMA 3R|Transformer, Dry Type, 3KVA, 208 Volt Primary - 120/240 Volt Secondary AC, NEMA 3R
$3,090.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Phase | 1 phase |
| Parameter | Value |
|---|---|
| Depth | 6.5 in (165.1 mm) |
| Width | 8.62 in (218.95 mm) |
| Height | 10.5 in (266.7 mm) |
| Power rating | 3 kVA |
| Enclosure code | 10A |
| Enclosure type | NEMA 3R |
| Temperature rise | 115 °C |
| Enclosure material | Painted sheet steel |
| Enclosure mounting | Wall mounted |
| Full capacity taps | 0 |
| Compliance (Compliance) | TAA |
| Insulation temperature | 356 °F (180 °C) |
| Product or component type | Dry Sealed Transformer |
| Primary to secondary voltage | 208 V 120/240 V |
MPN
3S7F
